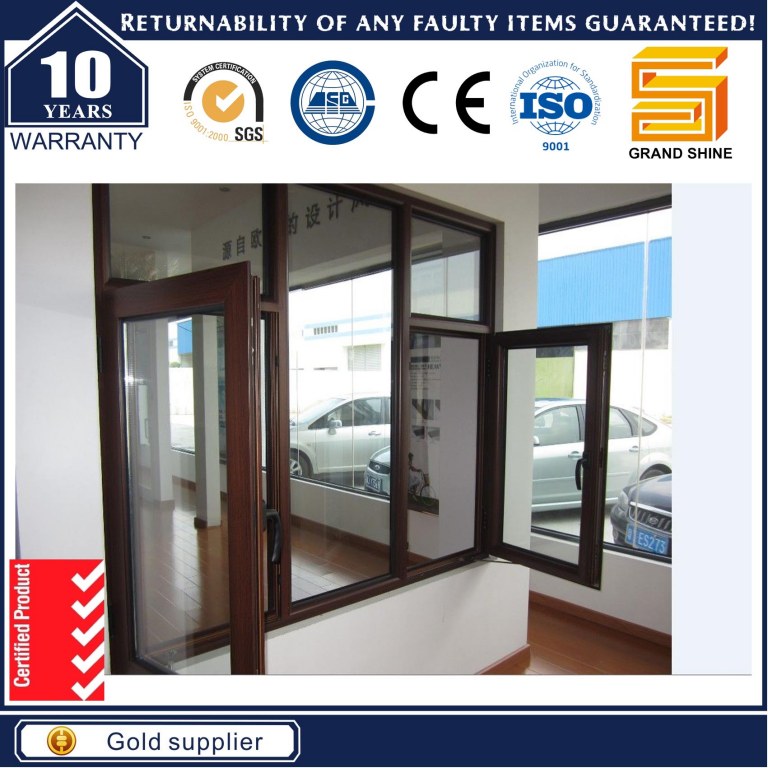

Double Pane Outside Opening Aluminum Casement Window
Prix : ≥50㎡，US$80；≥100㎡，US$
| Items | Aluminum casement window |
| Profile thickness | 1.4mm |
| Frame width | 90.2mm |
| Frame face width | 30mm |
| Sash face width | 48.4mm |
| Glazing options |
Type lOW-E/Reflective/Tempered/Floated/Coated Single glazing 4/5/6/8/10/12/15/19mm etc Double glazing Clear, Laminated, Low-E, Tempered 5mm+12A+5mm, 6mm+12A+6mm,5mm+0.76PVC+5mm, 6mm+12A+6mm, 6mm+1.14pvb+6mm+16A etc. |
| Aluminum color options |
Anodized black,Anodized light champagne,Wooden grain, Electrophoresis silver, powder coating white/grey,etc. |
| Glass color options |
Light grey,Light blue,Dark green,Dark blue,Light green,Clear glass, Bronze, Ford blue |
| Accessories |
Handle,Hinge,Ball lock,square lock Rubber strip for sealing,System Retaining Washer |
| Performance parameter |
1.Wind pressure performance 5.0kpa GB/T7106-2008/9 Class 2.Air permeability 0.5m3/(h.m) GB/T7107-2008/8 Class 3.Rain water permeability 700Pa GB/T7108-2008/6 Class 4.Air noise performance 45dB GB/T8485-2008/6 Class 5.Insulation performance1.1W/(m2.k)GB/T8484-2008/10 Class 6.Shading performance of SC 0.2 GB/T2680-2008/7 Class |
Packing information:
| Material: Plastic film, Foam, Carton, Wooden box | ||
| 20FT | Door(1.8mx2.2m) | Window(1.2mx1.2m) |
| 90pcs | 200pcs | |
| 40FT | 200pcs | 420pcs |
| 40HQ | 250pcs | 530pcs |
About GRANDSHINE:
1. We offer one-stop service: on-site measurement-design-install guidance-customer visit.
2. Over 100 projects worldwide represent the capability of GRAND SHINE.
3. As a state owned company, we have specialized in aluminum windows and doors for 20 years.
Our Serive:
website: www.grandshine.com
GrandShine, Your trusted building partner
One-stop supply of high quality building and decoration material
