DOUBLE RIB BRAKE SHOE ANGLE WELDING MACHINE
DOUBLE RIB BRAKE SHOE ANGLE WELDING MACHINE

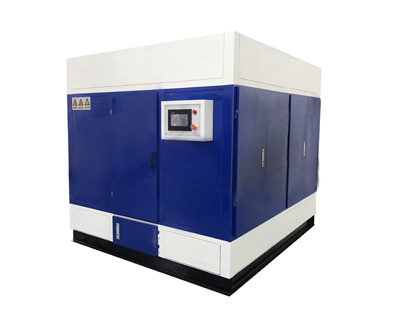

It is suitable for the positioning and welding of the welding seam at the outer corner formed by the double rib arc plate and the rib plate of the heavy truck brake shoe assembly. The equipment adopts a fully enclosed overall design, which has a beautiful appearance and is easy to maintain. There is an exhaust port, and the user configures the exhaust equipment for the interface with the exhaust duct or the welding machine fume treatment. The rotation of the workpiece is driven by a servo motor, and the positioning is accurate and reliable.
THE PARAMETER OF DOUBLE RIB BRAKE SHOE ANGLE WELDING MACHINE
Rated power |
Input voltage |
Enter the frequency |
Product diameter |
Panel width |
Gas welding machine |
Number of welds |
Cooling water presser |
Water temperature |
Dimensions |
40KVA |
3*380V |
50HZ |
Φ200-400mm |
<230mm</span> |
2 |
<6</span> |
3.0kgf/cm |
10-15℃ |
1900*1650*1900mm |
The Application Of Double Rib Brake Shoe Angle Welding Machine
The equipment is mainly used for the welding of heavy truck brakes, and is a special equipment for double-rib brake shoe fillet welding. The clamping, positioning, displacement, welding, and unloading of the workpiece are all automatically completed. The optimized program design makes the connection of each step smoother and the welding efficiency higher. The special machine is equipped with Japanese Panasonic stainless welding machine, and the welding shape is beautiful. The mold is light in weight, low in manufacturing cost, and can be assembled manually without a crane. The equipment design has many advantages such as easy to understand, easy to learn and easy to operate.
The Advantages Of Double Rib Shoes for Brakes Angle Welding Machine
The workpiece designed by the equipment is clamped by hydraulic method, and the fixture is specially designed, which can effectively control the welding deformation under the premise of ensuring the welding quality. The control system is controlled by PLC and color touch screen. The operation interface in Chinese and English is simple and intuitive. The welding current, voltage, welding time, idle stroke speed, welding point angle difference and spot welding parameters are all set by digital control.
Other Notes Of Double Rib Brake Shoe Angle Welding Machine
Double rib brake shoe angle welding machine Main Characteristics
1
It adopts fully enclosed overall design, beautiful appearance and easy maintenance.
2
There is an exhaust port, which can be connected with the customer's exhaust equipment.
3
The rotation of the workpiece is driven by a servo motor, and the positioning is accurate and reliable.
4
Hydraulic clamping is used to effectively control the welding deformation of the workpiece.
5
The mold is light in weight, low in manufacturing cost, and can be assembled manually without a crane.
6
The equipment design has the advantages of being easy to understand, easy to learn and easy to operate.
