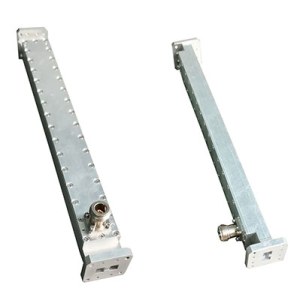

Double Ridged Waveguide Couplers

Waveguide coupler, typical main line standing wave VSWR1.10, auxiliary line standing wave VSWR1.25 within 20% of the waveguide bandwidth, typical coupling degree is 20/25/30/35/40/45/50 / 60dB. Due to its compactness The structure and good sealing performance are widely used in microwave systems below 12G. Because the bandwidth of the double-ridged waveguide ranges from octave to triple octave, such wide bandwidth makes it difficult to design the high-directional broadwall coupler of the double-ridged waveguide. Dolph microwave products have reached and close to the level of imported products, can replace imported broadband high-power ridge waveguide system.

We can offer different types of directional coupler for sale, and directional coupler price is affordable, if you have needs to buy multi hole directional couplers, please contact us.

If you want to know more details of directional coupler function, please visit our website.

As one of microwave waveguide manufacturers, we can offer different kinds of related products for sale, anything you need, please leave us a message.
