Double Twist Hexagonal Mesh
Anping Tenglu Metal Wire Mesh Co.,LTD

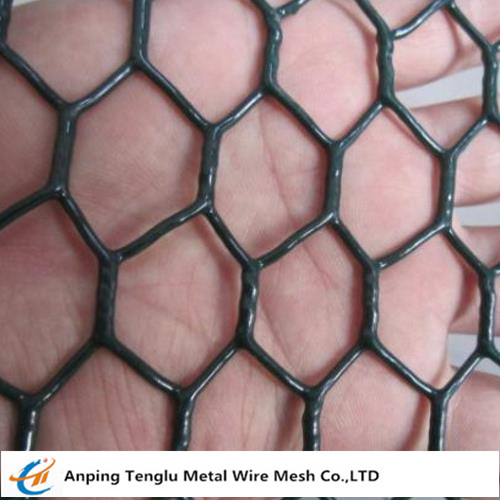

Double Twist Hexagonal Mesh
•Product Description:
Double twisted hexagonal steel wire mesh is available galvanized or galvanized with PVC sheets. PVC mesh is available in a variety of colors.
Due to the characteristics of the double twist, the steel wire double twist mesh can withstand the force of the falling rocks without unraveling in the event of wire breakage. The double twist mesh is anchored at the top of the slope with a trench at the bottom to collect the debris. Encapsulating vegetative soil pockets under the drapery system permits the establishment of vegetation if conditions permit.
Galvanized Hexagonal Wire Mesh Heavy Type: Made with high quality low-carbon steel wire to weave, steel wire tensile strength is 38kg/m2. The wire diameter may reach 2.0mm-4.0mm. The steel wire is usually galvanized. And the galvanizing layer thickness can be made according to the customer request. Max. galvanizing quantity can be 300g/m2.
PVC Coated Hexagonal Wire Mesh Heavy Type: PVC coated hexagonal Mesh is made of PVC coated wire that offers longer service life and better anti corrosion property.
•Materials: mild steel wire, stainless steel wire, PVC wire, etc.
•Advantages of double twist mesh:
Double Twist Mesh does not unravel should one of the wires fail
High tension and punching stress resistance
Maximum continuity at joints without the need to overlap mesh panels
Low installation costs
•Application:
Double twisted hexagonal steel wire mesh is used as a drapery system to prevent rockfall and debris from falling onto roads, railways or where there is a possibility of loss of property or life.
•Packaging : Wooden box
•Our Service:
Materials certification
Customized size
•Specifications:
Mesh Opening |
Wire Diameter |
60*80 |
2.2-2.4 |
75*95 |
2.4 |
80*100 |
2.6-2.7 |
80*120 |
2.6-2.7 |
90*90 |
2.6 |
90*120 |
2.6 |
100*120 |
2.7-2.8 |
100*135 |
2.7-2.8 |
120*150 |
3.0 |
