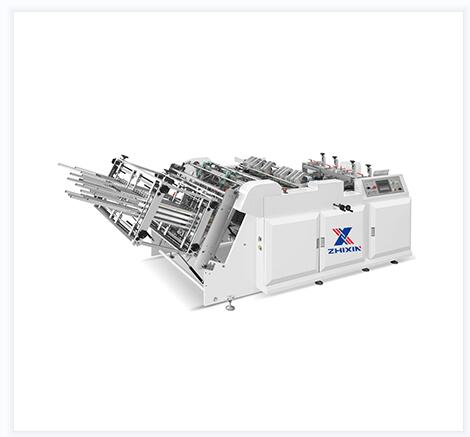

Double Workshop Carton Forming Machine
Double Workshop Carton Erecting Machine is an automatic machine, specialized in making food cartons, boxes, containers which are made from cardboard, paper, paperboard, corrugated paper etc.
The food box (carton, container, dish, tray) is widely used as a burger box, hot-dog box (tray), one block box, food pail box (Chinese food box, takeaway box), fries box (chips box, chips tray), lunch box, meal box, etc.
Features of Double Folding Machine
Press Mold
Servo motor controls the forming mould. (press mould) (advanced, more accurate than mechanism cam control)
Using Full Servo System
Using full servo system (3 servos in machine replace cam system)
Easy Exchange
Easy exchange moulds to make different products, charging and adjusting time is very short.
PLC Program
PLC program controls the whole line, available to make complicated boxes.
Automatic Collection, Stocking, And Counting
Automatic collection, stocking, and counting.
Easy And Safe
Man-designed to control buttons and panels, more easy and safe runs by user.
Save Time
PLC could save the adjusted parameter after you finish the adjustment, it will help you save time.
Specification of Double Workshop Carton Forming Machine
model : |
ZX-1600 |
|
speed: |
100-320pcs/min |
|
Material: |
200-620gsm |
|
box size: |
Length: |
L100-450mm |
Degree: 5°-45° |
||
Width: |
B100-600mm |
|
Height: |
H 15-200mm |
|
Power : |
6kw |
|
Air requirement: |
0.5Mpa, 0.4cube/min |
|
Voltage: |
380V 50Hz |
|
size: |
3600*1850*1700mm |
|
weight: |
2800kgs |
If you want to know more types of horizontal cartoner, please visit our website.
As a reliable packaging machinery factory, GROWING is committed to providing the products with higher speed, higher precision and higher stability to customers to meet their ever-increasing needs. Our product line contains die-cutting machine, film lamination machine, folder gluer machine, grey board slitting machine, paper bag machine, window patching machine, flute lamination machine, carton forming machine, and many other products.
