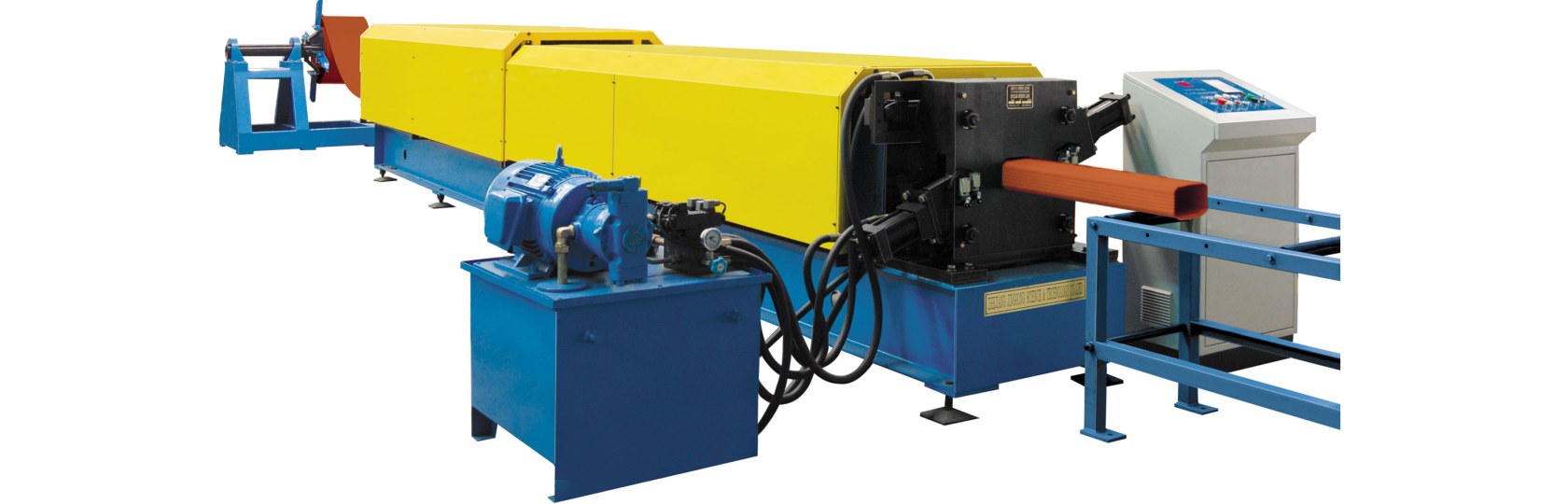

Downspout Roll Forming Machine

This downspout pipe roll forming machine can produce the sealed color water by forming the colored steel sheet and whipstitch it. The downspout formingmachine adopts a PLC control system, AC frequency conversion speed-adjust technology, therefore it can automatically cut to length. This is the original color steel Downpipe forming machine in China with carious freedom intellectual property and national patent.

The most standard size is 134*93mm and 153*106mm, and the suitable coil thickness and strength range is 0.5-0.6mm, 235-345Mpa for reference. After down pipe forming, we also have the curving pipe forming machine.

We can design and manufacture downspout roll forming machine for forming different profiles according to customers' requirements. We also have various types of roll forming machines for sale.

Downspout machines on Jinggongmachine.com, feel free to contact us and get downspout machine price!Parameter Of Downspout Roll Forming Machine for Sale

Item Parameter

Model HS-134 HS-118

Downpipe section specification 134×93 118×89

Material Type Color steel sheet

Thickness 0.45-0.55

Yield strength 230-300

Forming speed 10

Roller material 45# Steel with chrome-plated

Roller driven type Chain transmission

Controller PLC

Operation Touch screen+button

Hydraulic system pressure 12

Hydraulic station motor power 7.5

Main motor power 3

Total power 10.5

Total weight 8000

Technics flow Of Downspout Roll Forming Machine for Sale

Decoiling →guiding and feeding→roll forming →cut to length →run out table

For more information about continuous sandwich panel line, please feel free to contact us!
