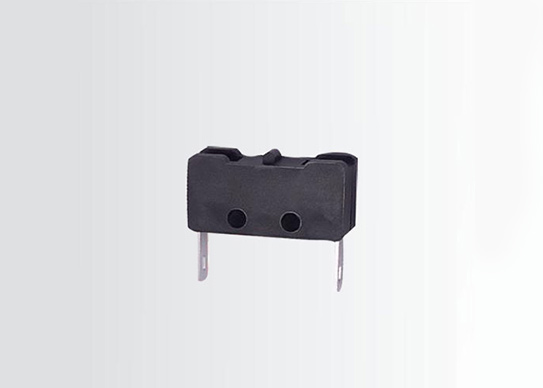

DPDT Micro Switch G606
Prix : USD0.05~USD3.00
Compact size and tight configuration
Long life, high reliability
Variety of terminals and levers.
DPDT double-break circuit
Widely used in Industry Control
Specifications of DPDT Micro Switch G606
|
Place of Origin |
Guangdong, China (Mainland) |
|
|
Brand Name |
Unionwell |
|
|
Model Number |
G606 Series |
|
|
Max Operating Force (at pin plunger) |
200gf |
|
|
Terminal Type |
Long Solder/Straight PCB/Left angle PCB/Right angle PCB/Side Solder |
|
|
Lever Type |
No Lever/Straight/Straight Lever With Hole |
|
|
Circuit Code |
DPDT-NO/DPDT |
|
|
Certifications |
ENEC, UL/cUL, CQC |
|
|
OEM/ODM |
Available |
|
|
Operating Frequency |
Electrical |
10~30 cycles/minute |
|
Mechanical |
120 cycles/min |
|
|
Insulation Resistance |
≥100MΩ（at 500VDC） |
|
|
Contact Resistance (Initial Value) |
30~100mΩMax ( Depend on P/N) |
|
|
Dielectric strength |
AC750V RMS, 50~60Hz |
|
|
Service Life |
Electrical |
50,000~100,000 cycles (Depend on P/N) |
|
Mechanical |
500,000 cycles |
|
|
Operating Temperature |
-40～+125°C |
|
|
Operating Humidity |
85%RH Max |
|
For more information about 2 pole micro switch, please feel free to contact us!
If you are looking for a reliable micro switch manufacturer, don't hesitate to contact us!
