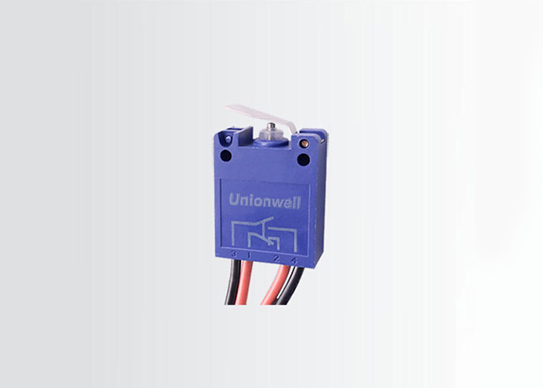

DPDT Sealed Micro Switch G11
Prix : USD0.05~USD3.00
Smaller size and more compact design
High reliability and durability
Design that is impervious to dust and water (IP67)
Double-break DPDT circuit
Choices for mounting and operation modes are varied. It is widely utilized in industrial control
Specifications of DPDT Micro Switch G11
|
Place of Origin |
Guangdong, China (Mainland) |
|
|
Brand Name |
Unionwell |
|
|
Model Number |
G11 Series |
|
|
Max Operating Force (at pin plunger) |
350/450gf |
|
|
Terminal Type |
Mold Lead Wires |
|
|
Lever Type |
No Lever/Straight/Roller |
|
|
Circuit Code |
DPDT/DPDT-NO/DPDT-NC |
|
|
Certifications |
ENEC, UL/cUL, CQC |
|
|
OEM/ODM |
Available |
|
|
Rating |
0.5A/5A 250VAC; 0.5A 250VDC |
|
|
Operating Frequency |
Electrical |
10~30 cycles/minute |
|
Mechanical |
120 Cycles/minute |
|
|
Contact Resistance(Initiative) |
30~100mΩ Max (Depend on P/N, wire resistance exclude) |
|
|
Insulation Resistance (at 500VDC) |
100MΩ Min |
|
|
Dielectric strength |
750VAC (50~60Hz) |
|
|
Operating Temperature |
-25～+85°C |
|
|
Operating Humidity |
85%RHMax |
|
|
Service Life |
Electrical |
50,000 cycles (Depend on P/N ) |
|
Mechanical |
2,000,000 cycles |
|
If you are looking for a reliable micro switch manufacturer, don't hesitate to contact us!
