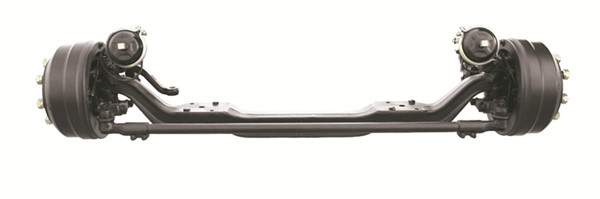

Drum/Disc Brake Front Axle Ass'y
Quantité : 30000
| Model | CH45F | ||
| Nominal Load(Kg) | 4200~4500 | ||
| Wheel Tread(mm) | 2036(Drum Brake)2074(Disc Brake) | ||
| Kingpin Inclination（°） | 7° | ||
| Caster Angle（°） | 0° | ||
| Kingpin Camber（°） | 1° | ||
| Kingpin Distance（mm） | 1847(Drum Brake)1840.6(Disc Brake) | ||
| Tie-in(mm) | 0~5 | ||
| Max.Turning Angle(°) | Inner41°/Outer33°（Drum Brake） | ||
| Inner40°/Outer31°Disc Brake） | |||
| Drum Brake Spec.(mm*mm) | ∮400*130 | ||
| Disc Brake Spec.(mm*mm) | 19.5" | ||
| Axle Weight(Kg) | 400(Drum Brake)420(Disc Brake) | ||
| Matching Model | 9~10.5M Bus | ||
| CH45F Performance Features | |||
| 1.Higher Generality meets Requirement of Mid Class Buss. | |||
| 2.High Rigidity, Low Weight of Front Axle, Economic Fuel Consumption. | |||
| 3.Bigger Inner Steering Angle, Excellent Maneuverability. | |||
| 4.Adjustable Tie Rod makes flexible Toe-In available, Service Life of Tire prolonged. | |||
| 5.Reasonable King Pin Incidence improved Steering Stabilization. | |||
| 6.Optimized Outer Camber prolonged Service Life of Tire. | |||
| 7.Most domestic Suspension Structure matchable. | |||
| 8.Both domestic and abroad Disc Brakes optional. | |||
| 9.Widened Shoe of Drum Brake suitable for various ASA. | |||
| 10. Standard ABS enhanced Vehicle Stabilization and Controllability. | |||
