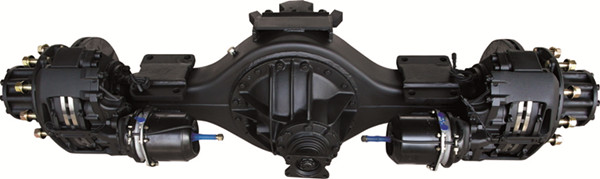

Drum/Disc Brake Rear Axle
Quantité : 30000
| Model | CH9SB | |
| Nominal Load(Kg) | 9000 | |
| Wheel Tread(mm) | 1860 | |
| Max. Troque Output (N.m) | 24000 | |
| Housing Spec.(mm*mm) | 145*165*14 | |
| Ratio | 3.909/4.333/4.875/5.571 | |
| Drum Brake Spec.(mm) | ∮410*220 | |
| Disc Brake Spec | 22.5" | |
| Axle Weight(Kg) | 570 | |
| Matching Model | 9~10.5M Bus | |
| CH9SB Performance Features | ||
| 1.Korean-Made Carrier Assembly ensures Low Noise. | ||
| 2.Low Weight, Economic Fuel Consumption. | ||
| 3.Efficient Drive Unit meets Torque Requirement of Euro IV Engine. | ||
| 4.Various Ratio makes reasonable Vehicle Motivity. | ||
| 5.High-Frequency Quenched Spindle, convenients for Rim Disassembling. | ||
| 6.Stamping Welding Structure, most domestic Suspension Matchable. | ||
| 7.Optional Caliper according to different demand (Disc Brake). | ||
| 8.Optional ASA according to different demand (Drum Brake). | ||
| 9.Standard ABS enhanced Vehicle Stabilization and Controllability. | ||
