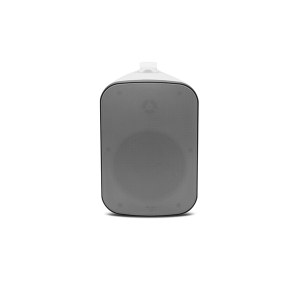

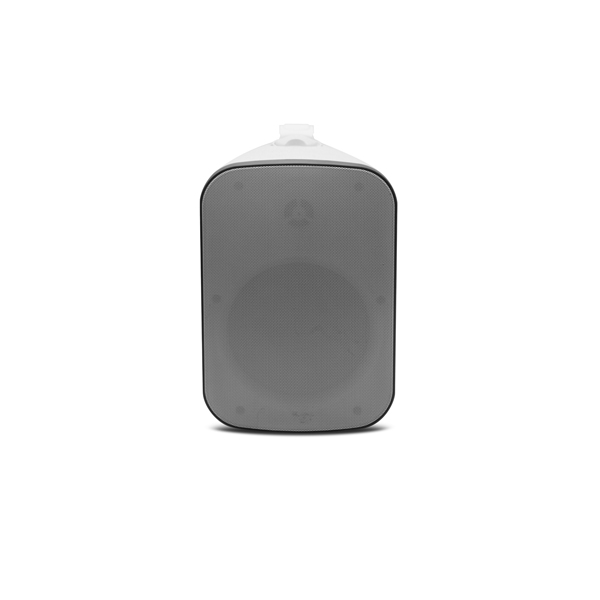

DSP5020/DSP5040/DSP5050 IP65 Waterproof Outdoor Wall Mount Speaker

Features:

● Commercial PA system wall-mounted speaker

● Exclusive optimal bass enhancement radiator technology

● IP65, all weather speaker for indoor and outdoor use

● With power tap for 70V/100V and 8Ω

● Rated output power 20W/40W/50W

● 1×5” and 1×6.5” for woofer and 1×1” for tweeter

● Quick installation with water-proof brackets

● Fashionable appearance with extraordinary sound quality

Introduction

Description of DSP5020/DSP5040/DSP5050 IP65 Waterproof Outdoor Wall Mount Speaker

DSP5020 Waterproof Wall Mount Speaker from DSPPA is developed to redefine a new design trend for wall mount speakers market where Beauty, Durability, Performance and User Friendliness come as ONE CORE CONCEPT.

This speaker with waterproof pa system can deliver impeccable audio as well as clean and clear announcements for public address systems. The Unique Rear Covers not only helped to cover the Euroblock Connector and Bypass Selector (PA Transformer) in the rear of the speaker, it is also designed to merge seamlessly with the OBE Bass Radiator and the overall design of Speakers giving it an extra touch of modern sophistication.

Specification

Model

DSP5020

DSP5040

DSP5050

Tweeter

1” silk soft dome

1'' silk soft dome

1'' silk soft dome

Woofer

5'' Graphite cone, rubber surround

6.5'' Graphite cone, rubber surround

8'' Graphite cone, rubber surround

Frequency Range +/-3

57Hz-20kHz

FO~20KHz±3dB

FO~20KHz±3dB

Power Handing RMS

40 W program,20 W (IEEE 219 )

40W

50W

Sensitivity

85dB

86dB

87dB

Taps

8Ω- 0 - 20W - 10W - 5W - 2.5W

8Ω- 0 - 40W - 20W - 10W - 5W

8Ω- 0 - 50W - 25W - 12.5W - 6.5W

Impedance

8 ohms

8 ohms

8 ohms

Termination

Pluggable terminal blocks

Pluggable terminal blocks

Pluggable terminal blocks

Attachment

Brackets

Brackets

Brackets

Dimensions H*W*D

258mm*168mm*163mm

285mm*200mm*195mm

381mm*250mm*250mm

Housing Material

ABS

ABS

ABS

Certificate

IP65 waterproof speaker

IP65 waterproof speaker

IP65 waterproof speaker
