Dual 10-inch Line Array Series Speaker
Dual 10 Inch Line Array Speakers

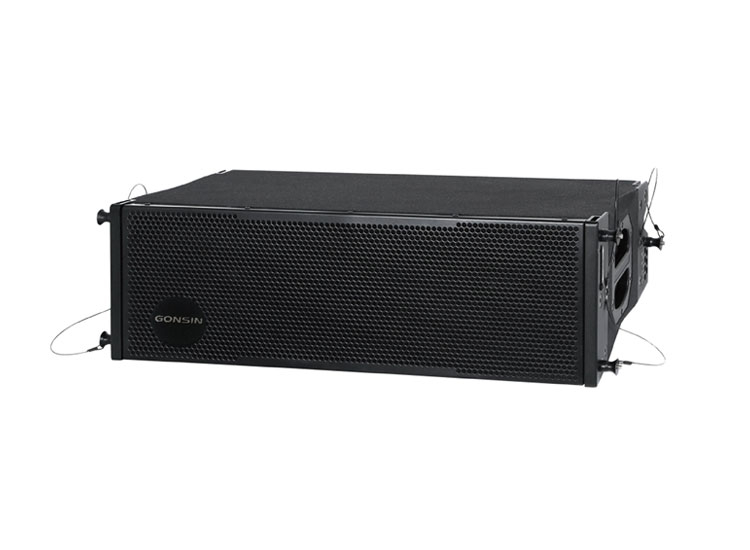

GX-SP2010DL-Z line array speaker is a medium-sized two-way crossover system, providing a bandwidth of 55Hz-20KHz. The box speaker array is fitted with two British top-level 34 mm voice coil HF drivers and two 10-inch LF drivers with stronger penetrating power and higher sound pressure level. The design is elaborate with superb appearance. GX-SP2018SSBC-Z is a subwoofer designed specifically for using with the GX-SP2010DL-Z line array speaker. The bass-reflex design makes the bass more abundant and powerful. With GX-SP2010DL-Z, it makes a high sound pressure level, clear sounds and a controllable full-range response range.
Technical Specifications of Dual 10-inch Line Array Series Speaker
|
Model |
GX-SP2010DL-Z |
GX-SP2018SSBC-Z |
|
Impedance |
16Ω |
8Ω |
|
Frequency range |
50Hz~20KHz(-10dB) |
38Hz~350Hz(-10dB) |
|
MAX SPL |
135dB(EIAJ) |
128dB |
|
Power(RMS) |
500W/ 2000W(PEAK) |
600W/ 2400W(PEAK) |
|
Horizontal coverage angle |
120° |
/ |
|
Vertical coverage angle |
10° |
/ |
|
MID LF unit |
2X12 Mid Low, 3"High power voice coil Ceramic alloy magnet, Waterproof paper cone |
1*18"Subwoofer, 4" High power voice coil Ceramic alloy magnet, Waterproof paper cone |
|
HF unit |
2X1"Titanium film, Neodymium magnet, 1.75"tube |
/ |
|
Sensitivity(1m/1W) |
101dB |
/ |
|
Hanger/Installation |
Hanger for line array, two handles |
36mm stand holder, hanger for line array, two handles |
|
Cabinet |
18mm birch plywood, black spray paint, metal mesh |
|
|
Signal connector |
Two parallel socket of SPEAKON |
|
|
Product Dimensions(W*D*H) |
900*450*285mm |
1010*835*550mm |
|
Package Dimensions(W*D*H) |
1010*540*375mm |
1010*790*613mm |
|
Net weight |
36.5Kg |
45Kg |
|
Gross weight |
38.3Kg |
53Kg |
Now the price of line array speaker for sale is reasonable, if you have needs, please contact us.
As a conference system manufacturer, we have professional conference system china for sale, if you are interested, please contact us.
