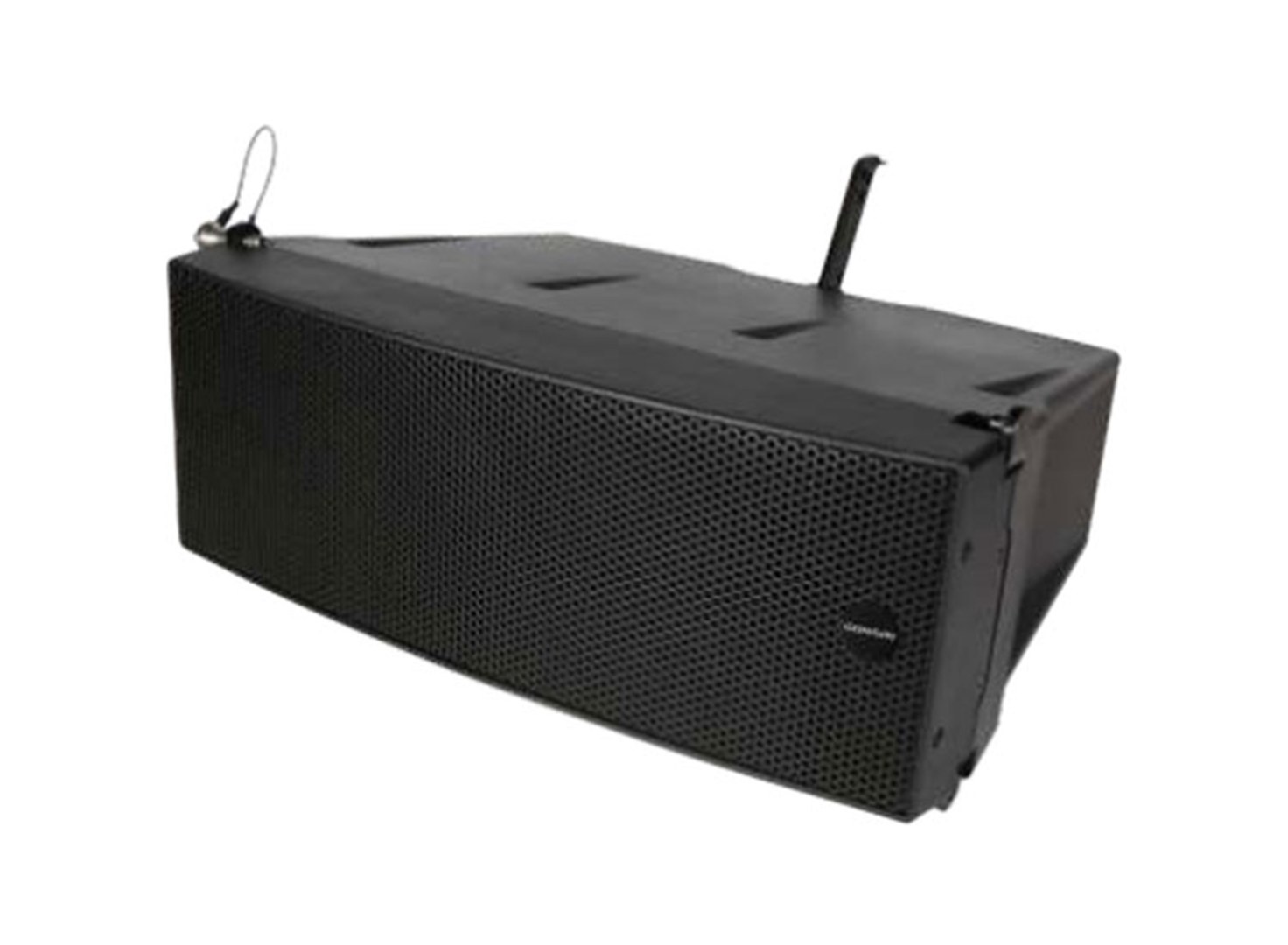

Dual 5-inch Line Array Series Speaker
The dual 5-inch line array speaker china is a small line array china package. The GX-SP2005DL-Z box speaker array is equipped with 2 5- inch Celestion units and 3 neodymium magnet 0.5-inch Celestion tweeters. The high and low units are matched with each other to make the sound Clean and powerful, and the intermediate frequency is more prominent and clear. Exquisite and concise appearance design, the back panel is designed with 9 kinds of angle accessory brackets, which is convenient for angle adjustment in different occasions. The whole system is simple to use and practical. With the GX-SP2012SSBB-Z 12-inch passive subwoofer speaker, the bass is enhanced and the sound field is more full and powerful. The box body is designed with a rectangular parallelepiped frameless structure, with a structural handle, small in size, light in weight, easy to install and move, and does not affect the overall appearance of the decoration.
Applications of Dual 5-inch Line Array Box Design
Auditorium
Multifunctional hall
Meeting room
Banquet hall
Technical Specifications of Dual 5-inch Line Array Series Speaker
|
Model |
GX-SP2005DL-Z |
GX-SP2012SSBB-Z |
|
Type |
Dual 5-inch Line Array Series Speaker |
Passive subwoofer |
|
Unit composition |
Bass: 2×5 inches |
Bass: 1×12 inch |
|
Treble: 1×1 inch |
||
|
Frequency response |
90Hz~20kHz |
40Hz-200Hz(-6dB) |
|
Sensitivity (1W/1m) |
100dB |
101dB |
|
Rated power/peak power |
240W/480W |
500W/1000W |
|
Maximum/peak sound |
124dB |
128dB |
|
pressure level |
||
|
Rated impedance |
8Ω |
8Ω |
|
Covering angle (H×V) |
Horizontal 100 °, vertical 5 ° |
- |
|
Connect the socket |
2×speakon NL4MP |
2×speakon NL4MP |
|
Dimensions (W×D×H) |
430×304×161mm |
437×440×410mm |
|
Package dimensions |
450×406×529(two pack) |
530×530×505mm |
|
net weight |
8kg |
19kg |
|
Gross weight |
19.5kg (two pack) |
21.5kg |
|
Appearance |
black |
black |
|
Hanging/installation device |
A set of stand |
Floor mat |
As a line array supplier, we can offer sorts of sound system array for sale, if you are interested, please contact us.
Now the price of conference audio equipment is reasonable, if you have needs to buy video and audio conferencing system, please contact us.
