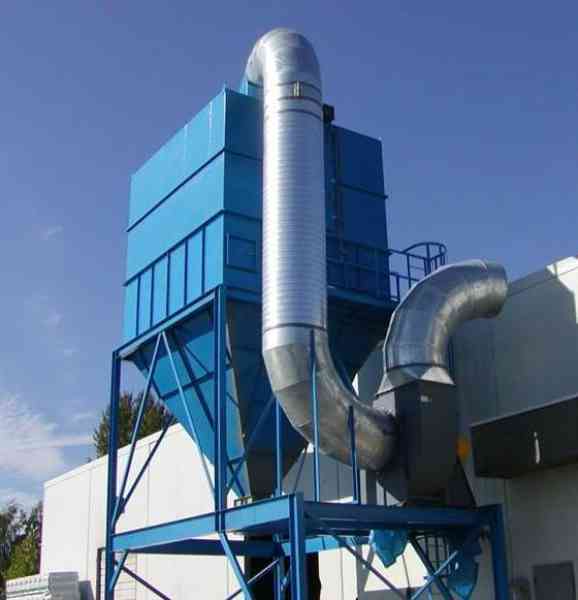

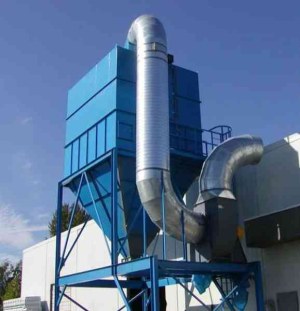

Durable Industrial Workshop Ash Collector

Durable industrial workshop ash collector

Principle of operation:
After dust-laden air enters the dust collector, due to sudden expanding airflow end and the role of air distribution plate, some of the large particle falls intohopper because of gravity and inertia; other small and tiny particle comes intofiltering chamber, then deposits on media's outer surfaces because of brownianmotion and fiber interception.

The clean air emerges into the cleaned air chamber and from there it is discharged. The resisstance of dust collector increases in accordance with expanding of dust concentration. When reaching a setpoint, the pulse valve of cleaning system jets a high speed&pressure airflow to clean the sut. That time PLC controls the open&close of the pulse valve.

While opening, the compressed air in packet enters theinner of filter cartridge equably, creates immediate pressure and great surge,and dislodges the dust layer falling into container.

1. Applied advanced downflow design and cartridge horizotal insertable layout, in this way dust collector shows good performance in dust cleaning job.
2. Dust baffle plate setup in the dust-laden air intake, in the role of cushion and durable layer, approaches-avoidance of high speed impact to filter cartridge,thereby extend the life of them.
3. Cartridegs 15 C tilt drawer-style installation, enables more convenient remove. And no setup of transmission parts inside the dust collector, which meansmaxmimum cutting of maintenance cost. In terms of general dust, there can be noreplacement of filter cartridges for a lone time, in the case of saving burdensome work of frequently changing comparing with filter bags, and also a huge reduction of maintance costs.
4. Modular portfolio, the size of dust collector could be optional to cusotmers' requirement.
5. The size could be expaned on basis of existing portfolio by increasing dust removal unit, without many changes of original equipment.


Durable industrial workshop ash collector technical parameter

Durable industrial workshop ash collector service
1.Reply you in the 24h
2.Reply you in English
3.Design according to technical requirement
4.Special discount and protection of sales are provided to distributor
5.We could do the field test to show the machine operation and work effect
6.We are manufacture, we could promise the quality and price


Qingdao Rovan Machinery Co., Ltd
1.Established in 2001the factory is located in Qingdao, China.
2.Mainly manufacture shot blasting machine, dust collector, microseism squeeze molding machine/sand molding machine, core shooter machine, resin sand production line, clay sand production line, etc.
3. All products has ISO9001 and CE certification,
4. OEM also could provide for you.
