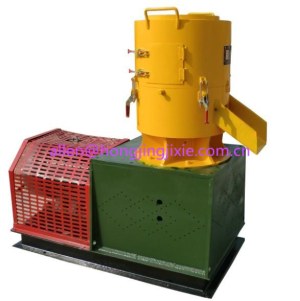

DZLP560 flat die pellet mill 0.8-1.0t/h with good quality

Quick Details

• Condition: New
• Place of Origin: Shandong, China (Mainland)
• Brand Name: Hongjing
• Model Number: DZLP560
• Voltage: 380V,50Hz,3phases
• Power(W): 55kw
• Dimension(L*W*H): 1.69 *0.78* 1.38(m)
• Weight: 2000 kg
• Certification: CE, ISO9001
• Warranty: 1 year
• After-sales Service Provided: Engineers available to service machinery overseas
• market: Europe, South America, Southeast Asia
• color: white,red,yellow or as your request
• working life of die: 3000-4000 hours
• working life of roller: 1500-2000 hours
• Type: Mill Machine
• capacity: 0.8-1.0t/h

Packaging & Delivery

1.counter flow type
2.factory use

3.uniform roller setting,stable running

Main product features

1 With reloading reducer extends the equipment of long life service.

2 The type machine on both ends of the pressure roller and the die,the outer ring line speed consistent,do not appear dislocation of the wheel and die friction,reduce the resistance,reduce the kinetic energy loss and prolong the service life of die.

3 Uniform roller setting,stable running.

4 Using central pressure regulating structure,adopting to different materials,ensure the suppression effect. The sawdust,corn straw takes a lot of pressure.Roller parts is the center of whole equipment parts,adopting high quality alloy steel and improving the service life.

5 The structure die stationary,spindle driving roller pressing materials,suitable for crushing straw particles.

6 With 3-30 mm diameter die,the type machine produced the different kinds of pellets and achieve the best effects.

Technical parameters:
