E series wind turbine generator

Model

E1000W

E2000W

E3000W

E5000W

Rated Power(W)

1000

2000

3000

5000

Rated Voltage (VDC)

24/48

48/120

48/120

240

Rated Current (VAC)

41/20

41/20

60/25

20

Rated Frequency (HZ)

50/60

50/60

50/60

50/60

Rotor Diameter (m)

2.7

3.2

3.7

6.2

Start-up Wind Speed (m/s)

2.5

2.5

2.5

2.5

Rated Wind Speed (m/s)

13

12

12

12

Security Wind Speed (m/s)

45

45

45

45

Wind Turbine Type

Upwind

Upwind

Upwind

Upwind

Yaw Mode

Mechanical

Mechanical

Mechanical

Mechanical

Rated Rotation Speed (r/m)

400

400

220

200

Shell Material

Aluminum Alloy

Aluminum Alloy

Aluminum Alloy

Aluminum Alloy

Blade Material

GFRP

GFRP

GFRP

GFRP

Blade Quantity

3

3

3

3

Guy Cable Tower height

6m

9m

9m

12m

Gross Weight (kg)

180

220

350

980

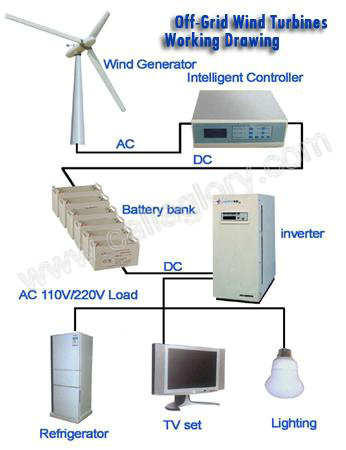

Matched Inverter Type

Pure Sine Wave Inverter

Controller

Charging Batteries and Protections Mechanism System by Brake and dumpload; detect temperature, wind speed, voltage, current, rotating speed and brake pressure

Protection Mode

Yawing (Auto/Manual), Hydraulic Brake and Dump Load

Turbine Life Span

15-20 years under normal conditions
