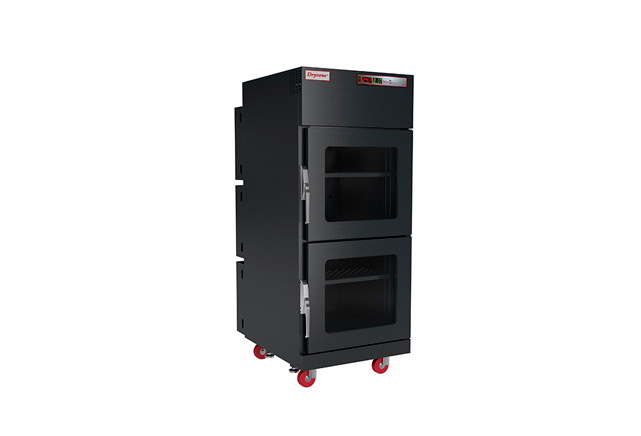

E60C Series Baking Dry Cabinet
E60C Series baking dry cabinet is 40~60℃ adjustable and <1%RH, it uses low temperature to evaporates water molecules inside the components, then the dehumidification host will completely absorb the water molecules in the air in the cabinet and discharge them out of the cabinet, and the humidity could go < 1%RH.It suites for kinds of electronic components, optical lenses, and other mildew preservation use.</span>
Specifications of E60c Baking Dry Cabinet
E60C-1200-6 Baking Dry Cabinet
Temperature |
40 ~60℃(adjustable), humidity <1%RH</span> |
Outside Dimension |
W1200*D780*H1966mm |
Internal Dimension |
W1086*D587*H1496mm |
Capacity |
954L |
Shelves |
5 shelves SUS |
Power Consumption |
1000w/h(Ave); 2110w/h(Max) |
Color |
Black |
Voltage |
230V/110V |
E60C-600 Baking Dry Cabinet
Temperature |
40 ~60℃(adjustable), humidity <1%RH</span> |
Outside Dimension |
W600*D780*H1966MM |
Internal Dimension |
W486*D587*H1496MM |
Capacity |
426L |
Shelves |
3shelves SUS |
Power Consumption |
600w/h(Ave); 1145w/h(Max) |
Color |
Black |
ESD Paint |
106~109Ω |
E60C-480 Baking Dry Cabinet
Temperature |
40 ~60℃(adjustable), humidity <1%RH</span> |
Outside Dimension |
W600*D780*H1455MM |
Internal Dimension |
W486*D587*H985MM |
Capacity |
281L |
Shelves |
3shelves SUS |
Power Consumption |
500w/h(Ave); 1145w/h(Max) |
Color |
Black |
ESD Paint |
106~109Ω |
Features of E60c Baking Dry Cabinet
Temp.&Humidity range |
40~60℃ adjustable, <1%RH</span> |
Display Precision |
±3%RH; ±0.5°C (at <10%RH, 25°C )</span> |
Structure |
1mm thick carbon steel double insulated layers with antistatic paint. |
Door |
Handles, airtight magnetic sealers and reinforced glass. |
Interiror Light |
Yes(open door the light on, close door the light off) |
Wheel |
Four 3" wheels, two of them with brakes. |
Grounding Wire |
1MG(940mm Long) |
The E60C baking dry cabinet is a high-quality storage solution offered by DryZone. It is specifically designed for the safe storage of moisture-sensitive items such as electronic components, PCBs, and other types of equipment. The cabinet is designed with advanced features such as temperature control and digital display, and a built-in baking function that allows for the safe removal of moisture from the stored items. The E60C cabinet is also equipped with anti-static materials, which helps protect your stored equipment from ESD damage. With its spacious and adjustable shelves, this cabinet is versatile and can be used for storing materials of different sizes and shapes. It is a durable and reliable storage solution that offers superior protection from moisture and humidity, ensuring the longevity of your sensitive equipment. Click here for more Baking Dry Cabinets.
Why is a Baking Dry Cabinet Important?
A dry air for industrial baking cabinet is an enclosed storage unit designed for the safe storage of materials and equipment that are sensitive to humidity. This cabinet is designed to maintain low humidity levels by circulating dry air inside the cabinet, creating a controlled environment that protects your materials from moisture and humidity. The baking function is used to evaporate moisture absorbed by the materials or components in the storage, which helps to prolong the life and quality of these materials.
Moisture-sensitive equipment and materials can become damaged or fail due to exposure to moisture or high levels of humidity. This can lead to costly replacements and delays in production. A baking dry cabinet is thus critical in preventing damage or failure of these materials, making it important equipment for any industry that utilizes moisture-sensitive materials.
How Does a Baking Dry Cabinet Work?
Baking dry cabinets maintain low humidity by circulating dry air inside the cabinet, creating a controlled environment that protects your materials and components from moisture and humidity. The baking function involves heating the cabinet to a specific temperature, which causes the moisture inside the materials or components to rise and evaporate, effectively restoring them to their dry state. This function helps to remove moisture content in these materials and components, which prolongs their life span and ensures the quality of the materials.
