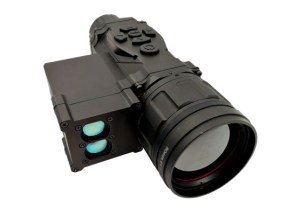

Eagle30CC Thermal Imaging Sight
Overview of Eagle30CC Thermal Imaging Sight
Eagle30CC can be used not only as a gun sight, but also as a one handed telescope. High performance and high precision laser rangefinder, AMOLED1024X768 high resolution eyepiece and PIP function of the screen help you find more details of your target. And also don't forget the features of quick start, ready to use and flexible.
Features of of Eagle30CC Thermal Imaging Sight
Integrated high performance 600 meter effective laser rangefinder
·
In different scenes, a variety of aiming reticles are optional
·
Built-in long-term lithium battery
·
Quick Disassembly of Picatinny Rails
Technical Specifications of Eagle30CC Thermal Imaging Sight
Item |
Eagle30CC |
|
Detector Data |
||
Type |
Uncooled FPA |
|
Material |
aSi |
|
IR resolution |
384×288 |
|
Pixel pitch |
17μm |
|
Spectral range |
8~14μm |
|
NETD/Sensitivity |
≤70mK |
|
Lens Data |
||
FOV |
10.6°×8.0° |
7.5°×5.5° |
Focal distance |
35mm |
50mm |
Recognition distance(Vehicle) |
950m |
1200m |
Recognition distance(Human) |
320m |
420m |
F.no |
1 |
|
Distance of exit pupil |
48mm |
|
Diopter |
-5~+5 |
|
Image Performance |
||
Display |
1024×768 OLED |
|
Frequency |
50Hz |
|
Amplification |
2×, 4× |
|
Polarity/LUT mode |
Black hot/White hot/Red hot |
|
PIP |
Yes |
|
Reticle color |
White/Black with reverse |
|
Reticle type |
5 reticle types(customizable) |
|
Startup time |
3s |
|
Contrast/Brightness |
Auto/Manual |
|
Laser Ranging |
||
Wavelength |
905nm |
|
Ranging distance |
600m |
|
Ranging accuracy |
±2m |
|
Interface |
||
Format |
Waterproof aviation plug(with power,video,RS232) |
|
Video output |
PAL |
|
Picatinny rail |
MIL-STD 1913 Picatinny Rail |
|
Power System |
||
Battery type |
Non-removable, rechargeable lithium battery |
|
Operating time |
>5h continuous |
|
Environment Parameters |
||
Operating temperature range |
-20℃~+50℃(-30℃~+60℃ ,optional) |
|
Storage temperature range |
-40℃~+70℃ |
|
Encapsulation |
IP66 |
|
Shock&vibration |
MIL-STD-810F |
|
Physical Data |
||
Size(without eyepiece) |
200mm×115mm×78mm(with 35mm lens) |
220mm×115mm×78mm(with 50mm lens) |
Weight(with battery) |
900g(with 35mm lens) |
1000g(with 50mm lens) |
Packing |
||
Standard |
Thermal imaging sights, Combination cables, Picatinny rail, Warranty card, User manual, Certificate, Transport case |
|
Option |
DC 5V power adapter |
|
Please note that product specifications are subject to change without notice. To acquire more accurate information, please feel free to contact us. |
Applications of Eagle30CC Thermal Imaging Sight
Law enforcement
Targeting systems
·
Defense systems
·
Zhejiang ULIRVISION Technology Co., Ltd. focuses on infrared thermal imaging, ultraviolet imaging, gas imaging camera, laser clearing instruments, intelligent inspection robot technology innovation and industrialization. We provide day and night vision camera, night scope camera and etc.
