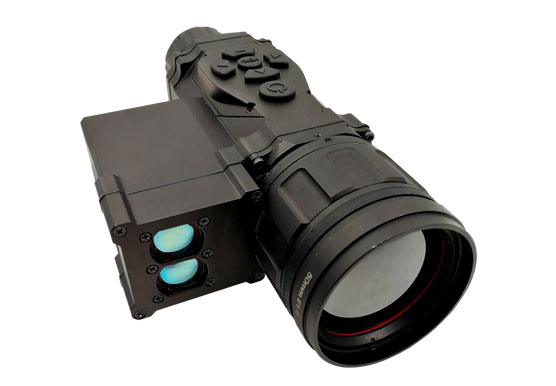

Eagle30CC Thermal Imaging Sight
Overview of Eagle30CC night vision handheld camera
Eagle30CC can be used not only as a gun sight, but also as a one handed telescope. High performance and high precision laser rangefinder, AMOLED1024X768 high resolution eyepiece and PIP function of the screen help you find more details of your target. And also don't forget the features of quick start, ready to use and flexible.
Features of of Eagle30CC night scope camera
Integrated high performance 600 meter effective laser rangefinder
In different scenes, a variety of aiming reticles are optional
Built-in long-term lithium battery
Quick Disassembly of Picatinny Rails
Technical Specifications of Eagle30CC Thermal Imaging Sight
Item Eagle30CC
Detector Data
Type Uncooled FPA
Material aSi
IR resolution 384×288
Pixel pitch 17μm
Spectral range 8~14μm
NETD/Sensitivity ≤70mK
Lens Data
FOV 10.6°×8.0° 7.5°×5.5°
Focal distance 35mm 50mm
Recognition distance(Vehicle) 950m 1200m
Recognition distance(Human) 320m 420m
F.no 1
Distance of exit pupil 48mm
Diopter -5~+5
Image Performance
Display 1024×768 OLED
Frequency 50Hz
Amplification 2×, 4×
Polarity/LUT mode Black hot/White hot/Red hot
PIP Yes
Reticle color White/Black with reverse
Reticle type 5 reticle types(customizable)
Startup time 3s
Contrast/Brightness Auto/Manual
Laser Ranging
Wavelength 905nm
Ranging distance 600m
Ranging accuracy ±2m
Interface
Format Waterproof aviation plug(with power,video,RS232)
Video output PAL
Picatinny rail MIL-STD 1913 Picatinny Rail
Power System
Battery type Non-removable, rechargeable lithium battery
Operating time >5h continuous
Environment Parameters
Operating temperature range -20℃~+50℃(-30℃~+60℃ ,optional)
Storage temperature range -40℃~+70℃
Encapsulation IP66
Shock&vibration MIL-STD-810F
Physical Data
Size(without eyepiece) 200mm×115mm×78mm(with 35mm lens) 220mm×115mm×78mm(with 50mm lens)
Weight(with battery) 900g(with 35mm lens) 1000g(with 50mm lens)
Packing
Standard Thermal imaging sights, Combination cables, Picatinny rail, Warranty card, User manual, Certificate, Transport case
Option DC 5V power adapter
Please note that product specifications are subject to change without notice. To acquire more accurate information, please feel free to contact us.
Applications of Eagle30CC Thermal Imaging Sight
Law enforcement
Targeting systems
Defense systems
As a thermal camera manufacturer, ULIRVISION focuses on infrared thermal imaging, ultraviolet imaging, gas imaging camera, china thermal camera, intelligent inspection robot technology innovation and industrialization.
