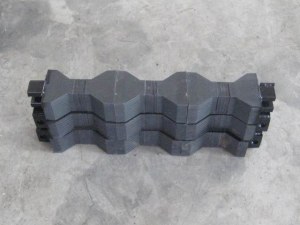

ECONO rack for tubulars
Packing frame for tubular
The frame is used to packing tubular goods during transportation, yard storage, workshop Save space and protect the tubular, which is a manner to Improve safety and handling, Fast loading and unloadin g, Reduces storage space.
Packing system comprises four frame assemblies, with each assembly made up of profiled segments, the number dependant on the pipe size, Each frame assembly is secured with threaded studs and locking n uts after the have been loaded
The moulded segments incorporate a steel beam to ensure maximum rigidity. The top and bottom segment s also have optional reflective strips on each to assist safety.
We can provide packing frame for drill pipe, drill collar, HWDP, casing, tubing.The frame material a re available in plastic and steel plate .
We also can provide under customer's requirements.
|
Packaging frame for Casing-Ordinary Type |
||||||
|
|
||||||
|
Item |
Size |
' OD |
Connections' OD |
Joints per layer |
Layers' Qty per bundle |
Joints per pack |
|
1 |
4 1/2” |
114.3mm |
127mm |
4 |
5 |
20 |
|
2 |
2 7/8” |
73mm |
111.1mm |
6 |
4 |
24 |
|
3 |
3 1/2” |
88.9mm |
127mm |
5 |
4 |
20 |
|
4 |
4” |
101.6mm |
139.7mm |
4 |
3 |
12 |
|
5 |
4 1/2” |
114.3mm |
158.8mm |
4 |
3 |
12 |
|
6 |
4 1/2” |
114.3mm |
168.3mm |
4 |
3 |
12 |
|
7 |
5 1/2” |
139.7mm |
184.2mm |
3 |
2 |
6 |
|
8 |
6 5/8” |
168.3mm |
215.9mm |
3 |
2 |
6 |
|
Packaging frame for Heavy Weight Drilling Pipe-Ordinary Type |
||||||
|
|
||||||
|
Item |
Size |
' OD |
Connections' OD |
Joints per layer |
Layers' Qty per bundle |
Joints per pack |
|
1 |
3 1/2” |
88.9mm |
127mm |
4 |
2 |
8 |
|
2 |
5” |
127mm |
168.3mm |
3 |
2 |
6 |
|
3 |
5 1/2” |
139.7mm |
184.2mm |
2 |
2 |
4 |
|
Packaging frame for Casing & Tubing-Ordinary Type |
||||||
|
|
||||||
|
Item |
Size |
' OD |
Connections' OD |
Joints per layer |
Layers' Qty per bundle |
Joints per pack |
|
1 |
2 3/8” |
60.3mm |
77.8mm |
7 |
6 |
42 |
|
2 |
2 7/8” |
73mm |
93.17mm |
6 |
5 |
30 |
|
3 |
3 1/2” |
88.9mm |
114.3mm |
5 |
4 |
20 |
|
4 |
4” |
101.6mm |
127mm |
4 |
3 |
12 |
|
5 |
4 1/2” |
114.3mm |
127mm |
4 |
3 |
12 |
|
6 |
5” |
127mm |
141.3mm |
4 |
3 |
12 |
|
7 |
5 1/2” |
139.7mm |
1153.67mm |
3 |
2 |
6 |
|
8 |
6 5/8” |
168.3mm |
187.71mm |
3 |
2 |
6 |
|
9 |
7” |
177.8mm |
194.46mm |
3 |
2 |
6 |
|
10 |
7 5/8” |
193.68mm |
215.90mm |
3 |
2 |
6 |
Personne à contacter : lily jing, 0086 29 85370919
