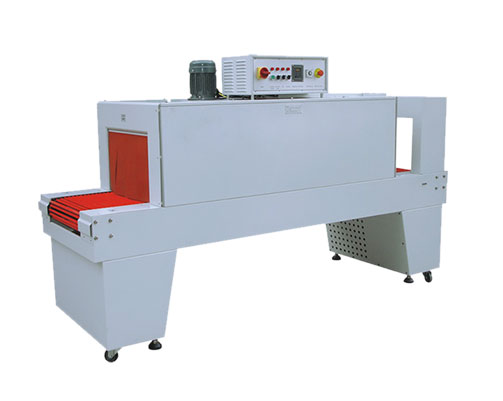

ECONOMICAL SHRINK TUNNEL PACKAGING MACHINE
GNS-5030 shrink tunnel packaging machine adopts the design of internal circulation air duct to ensure the uniform temperature in the furnace; Stainless steel heating tube, stable heating, and long service life; The outside of the conveying roller is wrapped with high-temperature resistant silicone hose, which is wear-resistant, high temperature resistant and long service life. Imported high temperature resistant and heat insulation cord fabric can greatly reduce heat loss, and can automatically cool down and shut down without manual waiting for the shutdown. Contact us now for our shrink wrap packaging machine!
ECONOMICAL heat tunnel shrink wrap machine TECHNICAL PARAMETERS
Machine Model |
GNS-5030 (Shrinkable Tunnel Machine) |
Cavity Size |
L1300mm × W500mm × H300mm |
Packaging Speed |
20-40 bpm |
Suitable Film |
POF or PE Film |
Power Supply |
3Ф220V/380V 50/60Hz |
Power |
13KW |
Max Temperature |
250℃ |
Net Weight |
250kg |
Dimension |
L1640 X W780 X H1560mm |
Economical shrink wrap tunnel machine Electrical Configuration
No. |
Name |
QTY |
Brand |
1 |
Draught Fan (0.37KW) |
1 |
SHENGJIE |
2 |
Conveying motor (120W) |
1 |
VTV |
3 |
Circuit Breaker (1P 2A) |
1 |
ZHENGTAI |
4 |
Temperature Controller |
3 |
SHIYAN |
5 |
Ac Contactor |
2 |
ZHENGTAI |
6 |
Intermediate Relay |
1 |
OMRON, JAPAN |
7 |
Thermal Relay |
1 |
ZHENGTAI |
8 |
Time Relay |
1 |
VHHD |
9 |
Leakage Switch |
1 |
TIANDE |
Economical shrink packing machine Features
01
The speed of the converyor belt and tunnel cavity temperature are adjustable;
02
The unique air regulating device is simple and convenient to operate, and the air volume can be adjusted according to the product specification and packaging speed;
03
Our economical shrink wrap tunnel machine possesses an advanced and unique centralized heating mode;
04
Effectively accelerate the heating time and relatively reduce the power loss;
05
The hot air circulation channel adopts the return air type hot furnace liner structure, and the hot air only runs in the furnace cavity to effectively prevent heat loss.
As a leading packing machine factory in China, We provide l sealer shrink wrap machine, shrink wrap tunnel for sale, side sealing machine and etc. For more information, please feel free to contact us!
