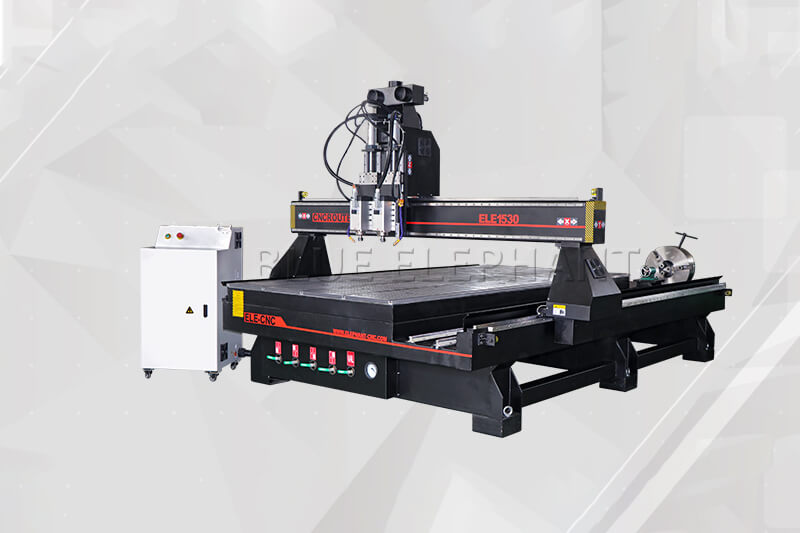

ELECNC-1530 4 Axis 3D Wood Sculpture Machine
Prix : $4,800.00-$35,000.00
This machine is called 4 axis CNC router for it is equipped with a rotary device based on the ordinary 3 axis machine. It not only can process the common objects but the cylindrical work pieces. With adopting the international components like HSD ATC spindle, Yaskawa inverter, Becker Vacuum pump, Hiwin linear, Syntec control system, the machine has a longer service life
Features:
The rotary device includes a fixed body and a shaft. As the fourth axis of the 4 Axis CNC router, it can replace the X axis or Y axis for column processing, such as chair frames, stair frames, roman columns, columns, etc.
Rigid vacuum table with grids and T-slots maximizes the vacuum hold-down power and also enables you to clamp the workpiece in place.
No matter of 3 axis CNC Router, or ATC CNC Router Machine, all the machines were designed with top quality components for the machine, such as HSD ATC spindle, Yaskawa Inverter, Becker Vacuum pump, Hiwin linear, Syntec control system and so on, to keep the machine in the best condition even after working for many years.
Parameter:
X,Y,Z Working Area |
1500x3000x400mm |
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
X,Y,Z Repositioning Accuracy |
±0.03mm |
The 4th axis |
±90° |
Table Surface |
Vacuum&T-slot Table |
Frame |
Welded Structure,heavy duty T-structure |
X, Y Structure |
Helical Rack gear, Taiwan Hiwin/PMI Rail Linear Bearings |
Z Structure |
Taiwan TBI Ball Screw Taiwan Hiwin/PMI Rail Linear Bearings |
Transmission |
X,Y rack & pinion drive,Z ball screw Transmission |
Max. Rapid Travel Rate |
45000mm/min |
Max. Working Speed |
30000m/min |
Spindle Speed |
18000rpm |
Spindle Power |
4.5kw Italy HSD air cooling spindle |
Working Voltage |
AC 380V/50/60Hz,3PH or AC 220V/50/60Hz |
Motor Drive |
1000w YASKWA servo motor servo driver from Japan |
control System |
SYNTEC 4 axis control system |
Software Compatibility |
Type3 , Artcam ,UGS ,UcancamV9 |
Running Environment Temperature |
0 – 45 Centigrade |
Inverter |
5.5kw Delta inverter |
Application
Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
We produce nesting CNC router,nesting cnc machine,wood sculpture machine and 4 axis cnc router,contact us now.
