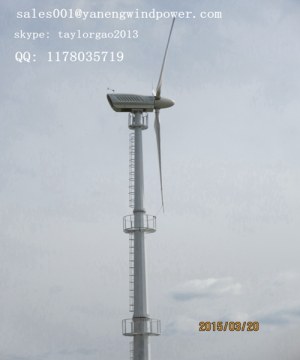

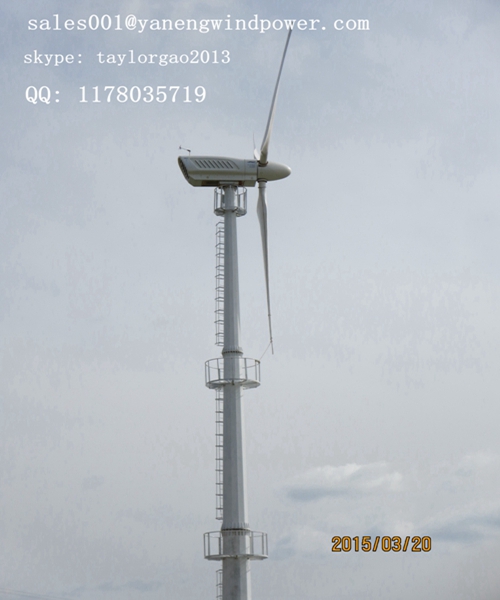

Electric pitch control 60kw wind turbine with 23m rotor diameter
Détails
Chine (Rép. pop) Divers
Divers

Electric pitch control 60kw wind turbine with 23m rotor diameter

Quantité : minimum 1   Prix : 60000$

1). Model: BFD 23-60KW

- rotor diameter is 23m,

- electric yawing, electric pitch control,

- CPU intelligent control, RS 485 communication, GPRS telecommunication .

- Siemens brushless yawing motor

- Siemens pitch control motor

- Simens PLC S7-1200

- NSK bearing

- Hydraulic disk brake

2). 60KW wind turbine technical specification


Model

FD23-60KW

Rotor Diameter(m)

23

Blade Material

Reinforced FPR

Blade Quantity

3

Rated Wind Speed (m/s)

8.5

Start-up Wind Speed (m/s)

3

Working Wind Speed (m/s)

3.0-35

Security Wind Speed (m/s)

50

Starting Torque (n/m)

120

Speed Adjustment Mode

Pitch Controlled + Active Yawing

Stop Mode

Feathering propeller , Yawing, Electromagnetic Brake

Generator Type

Permanent Magnet Three Phase AC generator

Rated Voltage

500VDC ( max 700vdc )

Rated Power

60KW

Max. Power

80KW

Rated RPM(R/Min.)

60

Mainbody Weight(kg)

6800

Tower Weight 30m(kg)

18150

Localisation : No. 587 JInghua Road, 253000 Dezhou,
Personne à contacter : Taylor Gao, 008615066594737
