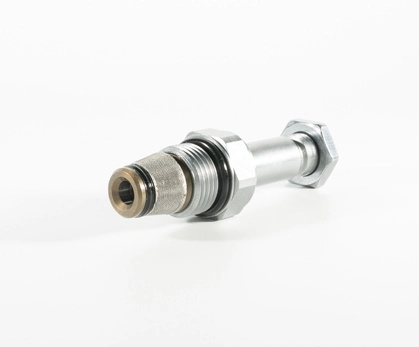

Electro-Proportional Directional Control Valve

An electro-proportional directional valve is a type of hydraulic valve that is used to control the direction of fluid flow in a hydraulic system with high accuracy and precision. It plays a vital role in ensuring optimal performance and efficiency in various applications.

How Is An Electro-proportional spool valve Controlled?

An electro-proportional directional control valve is controlled using electrical signals to determine the direction and flow of fluid in a hydraulic or pneumatic system. The valve contains a proportional solenoid that responds to the electrical input signal and adjusts the valve's internal components to control the fluid flow path.

Electrical Input Signal

The valve receives an electrical input signal, typically a current or voltage signal, from a control system or device. This signal is proportional to the desired position or operation of the valve.

01

Proportional Solenoid

The valve contains a proportional solenoid that converts the electrical input signal into a magnetic field. The strength of the magnetic field is proportional to the magnitude of the input signal.

02

Spool Positioning

The magnetic field generated by the proportional solenoid interacts with the valve's internal spool, which is typically spring-loaded. The solenoid's magnetic force counteracts the spring force to position the spool.

03

Spool Movement

As the solenoid's magnetic force increases or decreases in response to the electrical input signal, it moves the spool within the valve body. The spool's position determines the flow paths and connections within the valve.

04

Fluid Flow Control

The movement of the spool opens or closes specific flow paths or ports within the valve. This controls the direction and magnitude of fluid flow in the hydraulic or pneumatic system.

05

Feedback

Some electro-proportional directional control valves may have built-in position sensors or provide feedback signals to the control system. This feedback enables the control system to monitor and adjust the valve's position for precise control and closed-loop operation.
