Electrode en Graphite (RPI )
Quantité : ≥ 1 ton Prix : US $1650-4650/ton
Point d'origine: La chine( continentale)
Nom de marque: Duranice
connecteurs: 3 tpi, 4 tpi

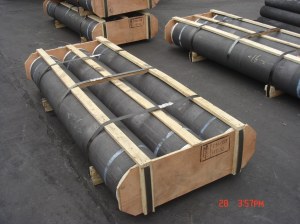

Détails d'emballage
Détails d'emballage: | Caisse en bois |
Spécifications
1. diamètre: 40-600mm or1.6 "-24"
2. longueur: 250-2400mm OR10 "-96"
3. qualités: rp, rpi, hp, shp, UHP (iso9001: 2008 standard)
4. nipples: 3TPI, 4TPI
Applications
Utilisé dans AEP et LF pour la fabrication de l'acier, ainsi que dans électrique fusion four pour la production industrielle de silicium, phosphore, etc.
Programmable propriétés
1. bonne conductivité électrique
2. haute résistance au choc thermique
3. Haute résistance mécanique
Qualités: Rp, rpi, hp, shp, UHP
Diamètre: 40-600mm or1.6 "-24"
Longueur: 250-2400mm OR10 "-96"
Tous graphite électrodes sont offerts avec conique mamelons, c'est à dire. 3 ou 4 fils par pouce, et répondre à la internationalement acceptée tolérances comme par Nema CG 1/IEC 60239/JIS R7201 normes.
Article | Unité | Régulière-puissance | Imprégné | ||||||
Φ 75- 130 |
Φ 150- 225 |
Φ 250- 300 |
Φ 350- 500 |
Φ 75- 200 |
Φ 250- 350 |
Φ 400- 500 |
|||
Résistance spécifique (≤) | E | μ Ω · m | 8.5 | 9 | 9 | 9 | 8 | 8 | 8 |
N | 8 | 8 | 8 | 8 | 7.5 | 7.5 | 7.5 | ||
Résistance à la flexion (≥)
|
E |
MPa
|
9.8 | 9.8 | 7.8 | 6.4 | 10 | 9 | 8 |
N | 13 | 13 | 13 | 13 | 15 | 15 | 15 | ||
Module d'élasticité (≤)
|
E |
GPa
|
9.3 | 9.3 | 9.3 | 9.3 | 12 | 12 | 12 |
N | 14 | 14 | 14 | 14 | 14 | 14 | 14 | ||
Masse volumique apparente (≥)
|
E |
G/cm3
|
1.58 | 1.52 | 1.52 | 1.52 | 1.58 | 1.58 | 1.58 |
N | 1.63 | 1.63 | 1.68 | 1.68 | 1.68 | 1.68 | 1.68 | ||
C. T. e. (≤)
(100-600 °C) |
E |
10-6 /°C
|
2.9 | 2.9 | 2.9 | 2.9 | 2.7 | 2.7 | 2.7 |
N | 2.7 | 2.7 | 2.8 | 2.8 | 2.5 | 2.5 | 2.5 | ||
Cendres (≤) | % | 0.5 | 0.5 | 0.5 | 0.5 | 0.3 | 0.3 | 0.3 |
