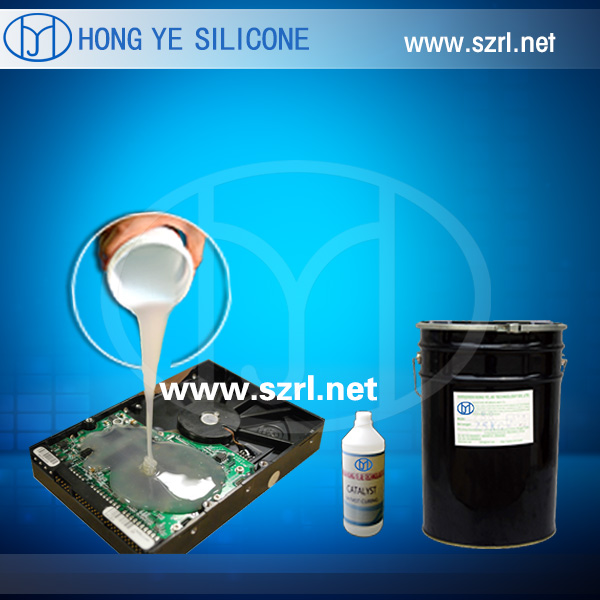

Electronic Potting Silicone Rubber
Quantité : 1000t Prix : 8,65 €
1. Product Feature of Electronic Potting Silicone Rubber
HY 9055 silicone rubber is a kind of low viscosity, two components addtion cured potting silicone wi th heat-conducting. It cures with both on room temperature and heated temperature. It has the featur e of the higher temperature the faster of the curing time. It can be applied to electronic component s for insulation, waterproofing, fixed and flame retardant. It mainly applied in electronic componen ts surface with materials of PC(Poly-carbonate)、PP、ABS、PVC, etc. and metal materials.
2. Typical Application of Electronic Potting Silicone Rubber
HY 9055 electronic potting silicone rubber could be applied to
- high powered electronics,
- DC/DC module and circuit board which requires heat dissipation and high temperature resistance.
-It can be broadly used for LED screen, Wind Power Generator, PCB substrate, etc.
Technical Parameters of of Electronic Potting Silicone Rubber
|
Features |
Part A |
Part B |
|
|
Before Curing |
Appearence |
Gray Fluid |
White Fluid |
|
Viscosisty（25℃cps） |
2500±500 |
2500±500 |
|
|
Operation features |
Mixing Ratio |
1：1 |
|
|
Viscosisty(after mixing) （cps） |
2000～3000 |
||
|
Operating Time（25℃ hr） |
120 |
||
|
Curing time （min，25℃） |
480 |
||
|
Curing time（80℃ hr） |
20 |
||
|
After Curing |
Hardness（Shore A） |
55±5 |
|
|
Thermal conductivity [W（m·K）] |
≥0.8 |
||
|
Dielectric Strength（KV/mm） |
≥25 |
||
|
Permittivity（1.2MHz） |
3.0～3.3 |
||
|
Volume Resisivity（Ω·cm） |
≥1.0×1016 |
||
|
linear expansibility [m/（m·K）] |
≤2.2×10-4 |
||
|
Fire Resistance |
94-V1 |
||
