ELECTROSTATIC FILTER MEDIA

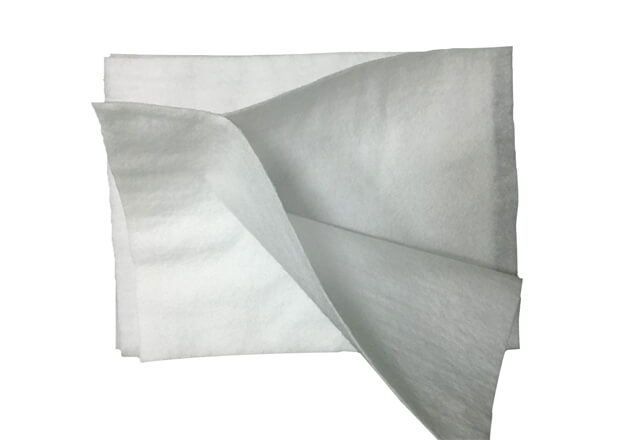

Electrostatic filter media is made of PP staple fiber and manufactured by needle punch process. Electrostatic was charged on the media with different ways so that the efficiency of the material could be in wide range of middle to high grade.Our premium quality electrostatic filter material is using in air conditioner, automotive cabin air, air purifier and other applications.

Electrostatic Filter Media Material Features

1

Wide efficiency range from F5 to H11. Unique electrical charge technologies to minimize charge degeneration effect;

2

Loose fibers structure of the "cotton mat" to ensure extremely low pressure drop;

3

Excellent higher dust holding capacity comparing to meltblown or other filter media;

4

Flexible combination with nonwoven protection and/or carrier layers to achieve excellent performance.

Electrostatic Filter Media Material Specifications

Type Area Weight

(g/m²) Thickness

(mm) Initial Efficiency*

(%) Pressure Drop*

(Pa) Structure Max. Width

(mm) Max. Roll Length

(m)

JK-D45% 50 ±10 0.90 ± 0.1 ≥45 ≤2 PP Cotton

+

PP protective layer 1500 250

JK-D65% 50 ± 10 0.90 ± 0.1 ≥65 ≤3

JK-D90% 70 ±10 1.1 ± 0.1 ≥90 ≤4

JK-D95% 80 ±10 1.15 ± 0.1 ≥95 ≤4

JK-PD45% 110 ±10 1.05 ± 0.1 ≥45 ≤4 PP protective layer

+

PP Cotton

+

PET backing layer 1500 250

JK-PD65% 110 ±10 1.05 ± 0.1 ≥65 ≤5

JK-PD90% 130 ±10 1.3 ± 0.1 ≥90 ≤6

JK-PD95% 140 ±10 1.35 ± 0.1 ≥95 ≤6

* Testing condition：0.3μm NaCl @ 5.3cm/s

Carrier material can be customized according to requirement from customers.
