EMC Cable Gland
EMC cable gland is designed for use with unarmoured, elastomeric and plastic cable or braided cables where EMC is required. Suitable for both indoor & outdoor applications, seals on cable outer sheath to IP68, and it fitted with patented EMC membrane, suitable to carry on cable shield.
EMC Cable Gland Specifications
|
Product |
EMC Cable Gland |
|
Category |
Brass Cable Gland |
|
Thread |
Metric Thread |
|
Connector Type |
Installable Straight |
|
Locking System/ Mating Style |
Screw |
|
Material |
Sealing nut, body and lock nut are made of nickel plated brass, the claw is made of PA and the seal and washer are made of nitrile butadiene rubber (NBR). |
|
Working termperature: |
-40 to 100 centigrade in static state,instantaneous heat resistance up to 120 centigrade,-20 to 80 centigrade in dynamic state,instantaneous heat resistance up to 100 centigrade. |
|
Characteristics |
Special design of clamping die and rubber part,large range in clamping cable, ultra-strong stretching resistance, waterproof, dustproof,and high ability to resist salt,acid,alkali, ,grease and general solvent. |
|
IP Rating |
IPX7 |
|
Additional Description |
With washer and lock nut |
EMC Cable Gland Parameters and Drawing
|
Model |
Thread specification |
Range (mm) |
Thread O .D . AG(mm) |
Thread Length GL (mm) |
Joint length H (mm) |
Spanner Size (mm) |
|
M10x1.5 |
M10/EMC |
3-6.5 |
10 |
6.5 |
19 |
14 |
|
M12x1.5 |
M12/EMC |
3-6.5 |
12 |
6.5 |
19 |
14 |
|
M14x1.5 |
M14/EMC |
4-8 |
14 |
8 |
19 |
17 |
|
M16x1.5 |
M16/EMC |
4-8 |
16 |
8 |
20 |
18 |
|
M18X1.5 |
M18/EMC |
5-10 |
18 |
8 |
21 |
20 |
|
M20x1.5 |
M20/EMC |
6-12 |
20 |
8 |
22 |
22 |
|
M22x1.5 |
M22/EMC |
10-14 |
22 |
8 |
23 |
24 |
|
M24x1.5 |
M24/EMC |
10-14 |
24 |
9 |
25 |
24/27 |
|
M25x1.5 |
M25-14/EMC |
10-14 |
25 |
9 |
25 |
24/27 |
|
M25-18/EMC |
13-18 |
25 |
9 |
27 |
30/27 |
|
|
M27x1.5 |
M27/EMC |
13-18 |
27 |
9 |
27 |
30 |
|
M28X1.5 |
M28/EMC |
13-18 |
28 |
9 |
27 |
30 |
|
M30X1.5 |
M30/EMC |
13-18 |
30 |
9 |
29 |
30/32 |
|
M32X1.5 |
M32/EMC |
15-22 |
32 |
10 |
29 |
35 |
|
M33X1.5 |
M33/EMC |
15-22 |
33 |
10 |
29 |
35/36 |
|
M36X1.5 |
M36/EMC |
18-25 |
36 |
10 |
31 |
40 |
|
M37X1.5 |
M37/EMC |
18-25 |
37 |
10 |
31 |
40 |
|
M40x1.5 |
M40-25/EMC |
18-25 |
40 |
11 |
31 |
40/45 |
|
M40-30/EMC |
22-30 |
40 |
11 |
35 |
45 |
|
|
M42x1.5 |
M42/EMC |
22-30 |
42 |
11 |
35 |
45 |
|
M47x1.5 |
M47/EMC |
25-33 |
47 |
11 |
37 |
50 |
|
M48x1.5 |
M48/EMC |
25-33 |
48 |
11 |
37 |
50/52 |
|
M50x1.5 |
M50/EMC |
32-38 |
50 |
12 |
37 |
57/55 |
|
M54x1.5 |
M54/EMC |
32-38 |
54 |
12 |
38 |
57 |
|
M60x1.5 |
M60/EMC |
37-44 |
60 |
13 |
38 |
64 |
|
M63x1.5 |
M63/EMC |
37-44 |
63 |
14 |
38 |
64/68 |
|
M64x2 |
M64/EMC |
37-44 |
64 |
14 |
38 |
64/68 |
|
M72x2 |
M72/EMC |
42-52 |
72 |
16 |
42 |
78 |
|
M75x2 |
M75/EMC |
42-52 |
75 . |
16 |
42 |
78/80 |
|
M80x2 |
M80/EMC |
55-62 |
80 |
18 |
45 |
88 |
|
M88x2 |
M88/EMC |
65-70 |
88 |
18 |
45 |
94 |
|
M100x2 |
M100/EMC |
78-84 |
100 |
20 |
53 |
110 |
EMC Cable Gland Details
Emc Brass Cable Gland Saichuang 1Emc Brass Cable Gland Saichuang 1
Emc Brass Cable Gland Saichuang 1

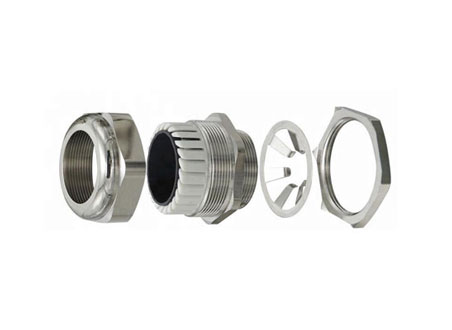

The EMC cable gland body is made of nickel-plated brass, and the clamping jaw is made of nylon. It has the characteristics of anti-pressure, strong and reliable, and long service life.
Emc Brass Cable Gland Saichuang 2Emc Brass Cable Gland Saichuang 2
Emc Brass Cable Gland Saichuang 2
The EMC cable gland is equipped with a special shielding ring to meet various anti-magnetic, anti-interference and other special environments.
Emc Brass Cable Gland Saichuang 3Emc Brass Cable Gland Saichuang 3
Emc Brass Cable Gland Saichuang 3
The EMC cable gland is strictly manufactured, the surface of the product is neat and smooth, no burrs, the threads are clear and tidy, the product is durable and high quality.
Emc Brass Cable Gland Saichuang 4Emc Brass Cable Gland Saichuang 4
Emc Brass Cable Gland Saichuang 4
The cable connector has high sealing performance, which can ensure the safety of cable connection. When installing the cable into the EMC cable gland, the anti-electromagnetic brass washer can guide the interference electromagnetic wave to the ground line together with the metal isolation braided net in the cable.
If you want to know more about emc cable gland installation, please visit our website.
As a cable gland supplier, we have types of related products for sale, anything you need, please contact us.
