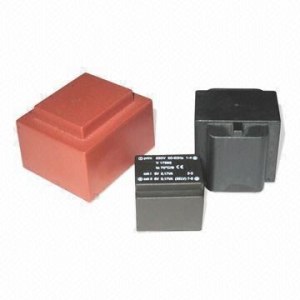

Encapsulated transformer
we are professional and focus on the power transformer and Servo transformer for more than 10 years. About the encapsulated transformer, we have different types for your selection, the power are from 1VA To 55VA. The features and series specification are as below:
Features:
IN PUT: AC 100~230V ±15%, 50/60Hz
OUT PUT: 1.0 ~ 55VA
Temperature class – Class B (130°C)
Ambient temperature (ta) – 70°C
Dielectric strength – 4000Vrms
Max. standby power consumption – 0.5 Watts
Potted under vacuum
Most of them are approved to CE,VDE,CQC, UL5085-3 (Class 2) & C-UL: CSA C22.2 No. 66-3-06
|
Series |
Part Number |
Secondary Rating |
Agency Approval |
||
|
(V) |
(mA) |
Power Rating(VA) |
|||
|
EI30 series |
JD30-***-*** |
6--24 |
167--533 |
1.0--3.2 |
UL506,CUL,TUV,CE,CQC |
|
EI38 series |
JD38-***-*** |
6--24 |
133--833 |
3.2--5.0 |
UL506,CUL,TUV,CE,CQC |
|
EI42 series |
JD42-***-*** |
6--24 |
208--1666 |
5.0--10.0 |
UL506,CUL,TUV,CE,CQC |
|
EI48 series |
JD48-***-*** |
6--24 |
500--3000 |
12.0--18.0 |
UL506,CUL,TUV,CE,CQC |
|
EI54 series |
JD54-***-*** |
6--24 |
666--2666 |
16 |
UL506,CUL,TUV,CE,CQC |
|
EI60 series |
JD60-***-*** |
6--24 |
833--4166 |
20.0--25.0 |
UL506,CUL,TUV,CE,CQC |
|
EI66 series |
JD66-***-*** |
6--24 |
1250--9166 |
30.0--55.0 |
UL506,CUL,TUV,CE,CQC |
Personne à contacter : jeff zeng, 86 755 33075780
