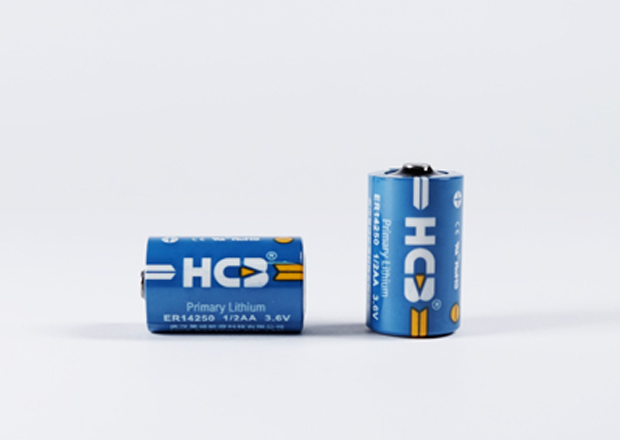

ER14250 Li-SOCl2 Cylindrical Battery
Primary Lithium Battery ER14250
Bobbin Type 1200mAh 3.6V Lithium-thionyl chloride [Li-SOCl2] 1/2AA-size ER14250H Battery for water meter, electricity meter, gas meter, heat meter, Automatic Meter Reading system
Product Details of ER14250 Li-SOCl2 Cylindrical Battery
|
Place of Origin |
PRC |
|
Brand Name |
HCB PRIMARY LITHIUM BATTERY |
|
Certification< /p> |
UN/CE/UL |
|
Model Number |
ER14250 |
Advantage of Batterie ER14250 Li-SOCl2 Cylindrical Battery
High and Stable Voltage
Energy Density up to 590Wh/kg
Long Shelf Life (less than 1% per year after 1 year of storage at +25℃)
Wide Operating Temperature (-60℃~+85℃)
Specification of ER14250 Li-SOCl2 Cylindrical Battery
|
trical characteristics |
Open circuit voltage (at 25°C) |
≥3.65V |
|
Nominal capacity |
1200mAh |
|
|
(At +25°C, battery discharged at continuous current 0.65mA until voltage reaches cut-off voltage 2.0V. The capacity can vary at different temperature, discharge current or cut-off voltage. ) |
||
|
Maximum continuous current |
40mA |
|
|
(At +25°C, 2.0V cut-off, battery discharged for minimum 50% of nominal capacity. ) |
||
|
Maximum pulse discharge current |
80mA |
|
|
(At +25°C, 2.0V cut-off, battery discharged for minimum 50% of nominal capacity with max pulse for 3 seconds after 27 seconds break. The discharged capacity may vary according to the pulse characteristics, the temperature, and the cell's previous history. Fitting the cell with a capacitor may be recommended in severe conditions, consult HCB.) |
||
|
Storage (recommended) |
≤+30°C |
|
|
(For more severe conditions, consult HCB) |
≤75%RH |
|
|
Operating temperature range |
-60°C~+85°C |
|
|
(Operation above ambient temperature may lead to reduced capacity and lower voltage readings at the beginning of pulses, consult HCB.) |
||
|
Physical characteristics |
Diameter |
14.3±0.1mm |
|
Height |
24.7±0.5mm |
|
|
Typical weight |
10.0g |
|
|
Li metal content |
0.35g |
|
As one of primary lithium battery manufacturers, we can offer kinds of non rechargeable lithium battery for sale, if you are interested, please leave us a message.
