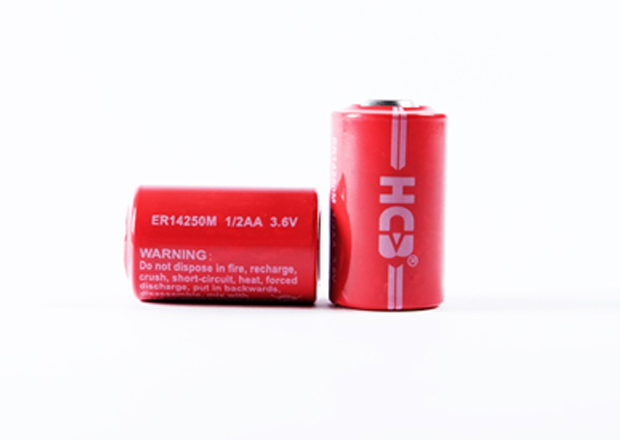

ER14250M Li-SOCl2 Cylindrical Battery

ctrical characteristics

Open circuit voltage (at 25°C)

≥3.65V

Nominal capacity

800mAh

(At +25°C, battery discharged at continuous current 2mA until voltage reaches cut-off voltage 2.0V. The capacity can vary at different temperature, discharge current or cut-off voltage. )

Maximum continuous current

100mA

(At +25°C, 2.0V cut-off, battery discharged for minimum 50% of nominal capacity. )

Maximum pulse discharge current

200mA

(At +25°C, 2.0V cut-off, battery discharged for minimum 50% of nominal capacity with max pulse for 3 seconds after 27 seconds break. The discharged capacity may vary according to the pulse characteristics, the temperature, and the cell's previous history. Fitting the cell with a capacitor may be recommended in severe conditions, consult HCB.)

Storage (recommended)

≤+30°C

(For more severe conditions, consult HCB)

≤75%RH

Operating temperature range

-55°C~+85°C

(Operation above ambient temperature may lead to reduced

capacity and lower voltage readings at the beginning of pulses, consult HCB.)

Physical characteristics

Diameter

14.4±0.1mm

Height

24.9±0.5mm

Typical weight

10.0g

Li metal content

0.23g
