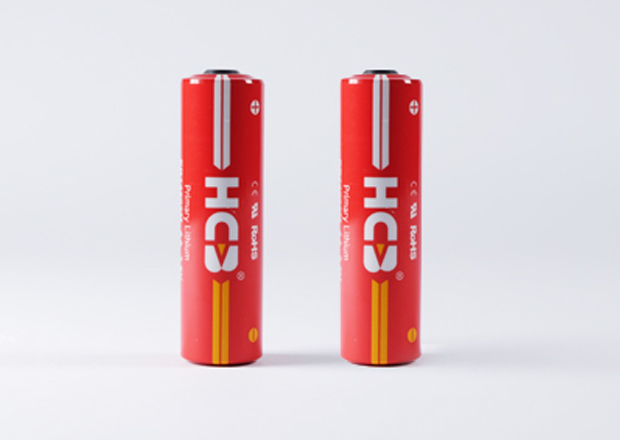

ER14505M Li-SOCl2 Cylindrical Battery
Long Shelf Life High-Reliability Safe Design High Pulse Spiral Type Non-Rechargeable 2100mAh ER14505M Lithium Battery AA model for Water Meter, Smaller Global Tracker, GPS, metering, medicial device, Smart Metering, RFID Devices, Communication Equipments, Security System.
Advantage of ER14505M Li-SOCl2 Cylindrical Battery
High and Stable Voltage
Energy Density up to 907Wh/L
Long Shelf Life (less than 1% per year after 1 year of storage at +25℃)
Wide Operating Temperature (-55℃~+85℃)
Specification of ER14505M 3.6 V Li-SOCl2 Cylindrical Battery
|
cal characteristics |
Open circuit voltage (at 25°C) |
≥3.65V |
|
Nominal capacity |
2100mAh |
|
|
(At +25°C, battery discharged at continuous current 4mA until voltage reaches cut-off voltage 2.0V. The capacity can vary at different temperature, discharge current or cut-off voltage. ) |
||
|
Maximum continuous current |
400mA |
|
|
(At +25°C, 2.0V cut-off, battery discharged for minimum 50% of nominal capacity. ) |
||
|
Maximum pulse discharge current |
800mA |
|
|
(At +25°C, 2.0V cut-off, battery discharged for minimum 50% of nominal capacity with max pulse for 3 seconds after 27 seconds break. The discharged capacity may vary according to the pulse characteristics, the temperature, and the cell's previous history. Fitting the cell with a capacitor may be recommended in severe conditions, consult HCB.) |
||
|
Storage (recommended) |
≤+30°C |
|
|
(For more severe conditions, consult HCB) |
≤75%RH |
|
|
Operating temperature range |
-55°C~+85°C |
|
|
(Operation above ambient temperature may lead to reduced capacity and lower voltage readings at the beginning of pulses, consult HCB.) |
||
|
Physical characteristics |
Diameter |
15.1±0.2mm |
|
Height |
50.4±0.8mm |
|
|
Typical weight |
22.0g |
|
|
Li metal content |
0.60g |
|
As one of the professional primary lithium battery suppliers, HCB Batteries' main product range covers lithium-thiocarbonyl chloride column batteries, lithium-manganese dioxide column batteries, lithium-manganese dioxide flexible packaging batteries, lithium thionyl chloride batteries, and battery capacitors UPC.
