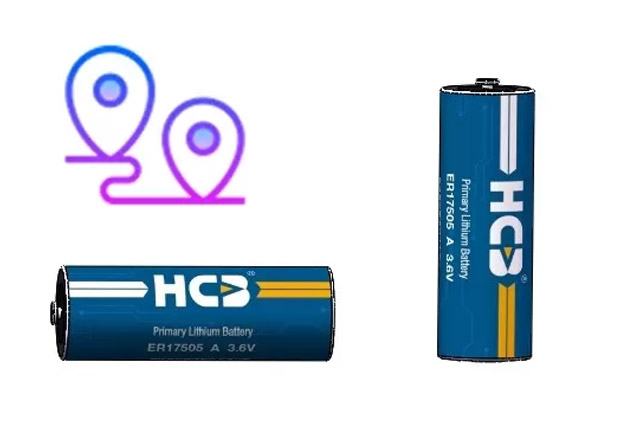

ER17505 Li-SOCl2 Cylindrical Battery
Primary Lithium Battery ER17505
3600 mAh capacity
Wide Temperature Range Long Shelf Life
3.6V Lithium-thionyl chloride [Li-SOCl2] A-size bobbin battery ER17505 Widely used in utilities, medical, stainless steel container, somke detector, water meter, electricity meter, gas meter, heat meter.
ER17505 Lithium Battery Details
Place of Origin |
Made in PRC |
Brand Name |
HCB |
Certification |
UN/CE/UL |
Model Number |
ER17505 / A size ER battery |
ER17505 Li-SOCl2 Cylindrical Battery Advantages
High and Stable Voltage
Energy Density up to 590Wh/kg
Long Shelf Life (less than 1% per year after 1 year of storage at +25℃)
Wide Operating Temperature (-55℃~+85℃)
ER17505 Li-SOCl2 Lithium Primary Battery Specification
Nominal Capacity |
3600mAh |
Battery discharged at continuous current 1.7mA until the voltage reaches cut-off voltage 2.0V at ambient temperature 23±2℃ |
|
Nominal Voltage |
3.6 V |
Maximum Continuous Current |
100mA |
Battery with minimum 50% rated capacity discharged at ambient temperature 23±2℃ |
|
Maximum Pulse Discharge Current |
250mA |
Battery with minimum 50% rated capacity discharged at max pulse for 3 seconds after 27seconds break. Ambient temperature 23±2℃ |
|
Storage Condition |
Temperature ≤ 30℃ |
Humidity ≤ 75%RH |
|
Operating Temperature |
-55℃ to +85℃ |
Battery Dimension |
See drawing on page |
Max Weight |
24.0g |
Self-discharge Rate |
1% |
Max self-discharged rate at ambient temperature 23±2℃ |
|
Shelf Life |
10 years |
Ambient temperature 23±2℃ |
1. Battery Characteristic of ER17505 Li-SOCl2 Cylindrical Battery
High Voltage
We offer the nominal voltage of up to 3.6V, the working voltage varies with the load, generally between 3.3V ~ 3.6V.
High Energy Density
We provide a specific energy density up to 510Wh/kg.
Wide Operating Temperature Range
The battery with strong adaptability to temperature can be in work between -55℃ ~ +85℃.
Stable Operating Voltage
Battery voltage is very stable during work, more than 90% of the capacity could be output on a fixed high voltage platform.
Long Shelf Life
Under the condition of normal temperature, theER17505 battery self-discharge rate of no more than 2% per year.
Battery sealing using the fully sealed structure to reduce the leakage of the battery, make the battery can be stored at room temperature for more than 10 years.
2. Main Applications of ER17505 Li-SOCl2 Cylindrical Battery
Medical devices
Cardiac pacemaker, respirator, oxygenator, inspection devices, monitoring devices, infusion pump, etc.
IoT devices
Smoke detectors, security alarms, seismometers, locking systems, monitoring systems, etc.
Tracking
RFID products, road toll transponder, IC cards, etc.
