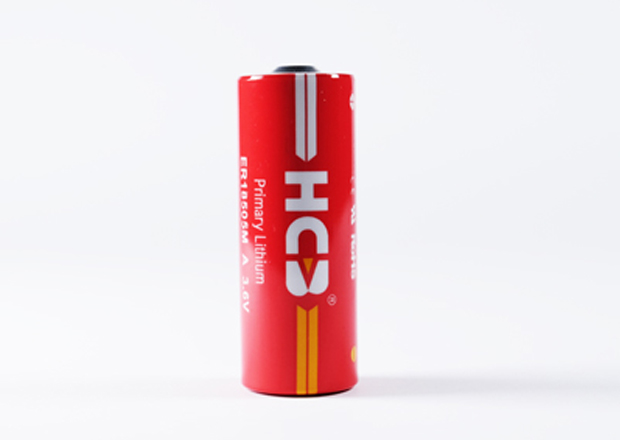

ER18505M Li-SOCl2 Cylindrical Battery
Non-rechargeable Hermetic Sealing 3500mAh ER18505M Primary Lithium Thionyl Chloride Battery Spiral type 3.6V for electronic meter, smart meter, smoke detector.
Advantage of er18505m 3.6 v
High and Stable Voltage
Energy Density up to 899Wh/L
Long Shelf Life (less than 1% per year after 1 year of storage at +25℃)
Wide Operating Temperature (-55℃~+85℃)
Specification of ER18505M Li-SOCl2 Cylindrical Battery
Electrical characteristics |
Open circuit voltage (at 25°C) |
≥3.65V |
Nominal capacity |
3500mAh |
|
(At +25°C, the battery is discharged at a continuous current of 6mA until the voltage reaches a cut-off voltage of 2.0V. The capacity can vary at different temperatures, discharge current or cut-off voltage. ) |
||
Maximum continuous current |
600mA |
|
(At +25°C, 2.0V cut-off, battery discharged for a minimum of 50% of nominal capacity. ) |
||
Maximum pulse discharge current |
1200mA |
|
(At +25°C, 2.0V cut-off, battery discharged for a minimum of 50% of nominal capacity with max pulse for 3 seconds after 27 seconds break. The discharged capacity may vary according to the pulse characteristics, the temperature, and the cell's previous history. Fitting the cell with a capacitor may be recommended in severe conditions, consult HCB.) |
||
Storage (recommended) |
≤+30°C |
|
(For more severe conditions, consult HCB) |
≤75%RH |
|
Operating temperature range |
-55°C~+85°C |
|
(Operation above ambient temperature may lead to reduced |
||
Physical characteristics |
Diameter |
18.7±0.3mm |
Height |
50.1±0.8mm |
|
Typical weight |
32.0g |
|
Li metal content |
1.01g |
As one of the most professional primary lithium battery suppliers, we provide non rechargeable lithium battery, lithium battery cells for sale, lithium cells for sale and etc. Contact us to know more.
