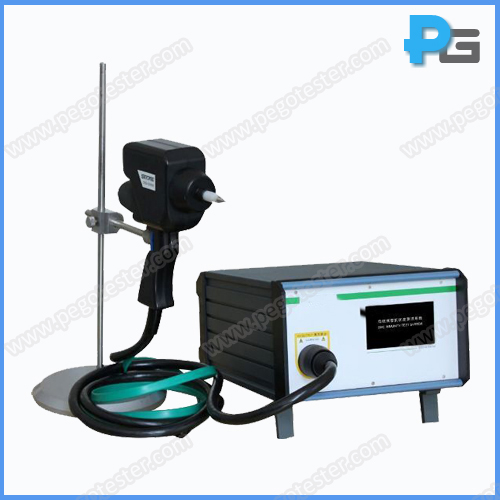

ESD-2000 20KV Electrostatic Discharge Generator
ESD-2000/2005 Electrostatic Discharge Generator
1. Introduction
ESD-2000/2005 ESD generator is completely meet the requirements of IEC61000-4-2. The max output voltage can reach 20KV (ESD-2000)/3KV(ESD-2005), and has the features of compact structure, multiple functions and easy operation, can applied to most electronic equipment for ESD testing, like mobile, PC, MP4, digital TV, power adaptor, Li-battery, electric toy, LED lighting, vehicle electronic, treadmill and etc.
2. Specification
|
Model |
ESD-2005 |
ESD-2000 |
|
Output voltage |
0.5～30kV±3％ |
0.1～20kV±3％ |
|
Polarity |
Positive, negative |
|
|
Trigging mode |
SINGLE, COUNT, 20PPS, * |
|
|
Discharge mode |
Air discharge, contact discharge |
|
|
Discharge interval |
0.1～9.9s (0.05S @ 20pps mode) |
|
|
Numbers of discharge |
0～999 |
|
|
Energy storage capacitance |
150pF±10％ |
|
|
Discharge resistor: |
330Ω±10％ |
|
|
discharge electrode |
Conical contact discharge electrode and spherical air discharge electrode |
|
|
Air discharge voltage keep time |
More than 5S |
|
|
Working environment |
Ambient temperature: 10℃～35℃ humidity: 30％～60％ |
|
|
Power |
Single AC85～265V，50／60Hz |
|
|
Dimension and weight |
250×210×130mm（D×W×H）/4kg |
|
