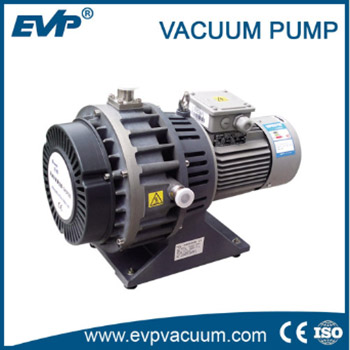

EVP series dry scroll vacuum pump
EVP series oil free dry scroll vacuum pump is comprised by pump head, motor and basement. The pump head including fixed scrolls, orbiting scroll, main shaft, cooling fans, crank shaft kits, and bracket.
It contains two spiral cylinders, one offset and orbiting against the other with an offset of 180°. Thus several crescent-shaped pockets of differing sizes are created. By means of an eccentric drive, the orbiting scroll orbit surround the fixed scroll, reducing the volume of the pockets and compressing gases from the outside towards the inside. Thereby, pumping the gases from vacuum chamber.
Applications:
It's widely used in semiconductor, aerospace, petrochemical, food and medicines, electric power, energy, environmental protection, automobile, test and analysis instrument industries. It's stable,reliable and clean, which has gained good reputation in industrial production and scientific research.
Main Features:
1.Provide oil free clean vacuum to vacuum system.
2.Low noise, less vibration, low temperature rise, sealing materials with excellent properties; Life for more than five years, reliable and durable.
3.Exhaust parts do not contact with each other, no friction, high efficiency; No return oil and water vapor;
4.It can replace oil rotary vane vacuum pump when the ultimate pressure lower than 1 Pa.
5.The moving parts without friction and low energy consumption;
6.Accessories with high quality and low price; After Service is timely and reliable, saving operating costs.
7.No need cooling water or lubricant, no need daily maintenance, saving manpower cost.
Model |
EVP1000 |
EVP600 |
EVP300 |
EVP150 |
|||||
Displacement |
50Hz |
l/s |
16.6 |
8.7 |
4.3 |
2.0 |
|||
l/min |
996.0 |
522.0 |
258.0 |
120.0 |
|||||
m3/h |
59.8 |
31.3 |
15.5 |
7.2 |
|||||
cfm |
35.8 |
18.7 |
9.3 |
4.3 |
|||||
60Hz |
l/s |
19.9 |
10.4 |
5.1 |
2.4 |
||||
l/min |
1194.0 |
624.0 |
306.0 |
144.0 |
|||||
m3/h |
71.6 |
37.4 |
18.3 |
8.6 |
|||||
cfm |
42.8 |
22.3 |
10.9 |
5.1 |
|||||
Ultimate Pressure |
Pa |
≦1.0 |
≦1.0 |
≦2.6 |
≦8.0 |
||||
Torr |
≦7.5×10-3 |
≦7.5×10-3 |
≦1.9×10-2 |
≦6.0×10-2 |
|||||
mbar |
≦1.0×10-2 |
≦1.0×10-2 |
≦2.6×10-2 |
≦8.0×10-2 |
|||||
psi |
≦1.4×10-4 |
≦1.4×10-4 |
≦3.8×10-4 |
≦1.2×10-3 |
|||||
Noise Level |
dB(A) |
≦63 |
≦63 |
≦63 |
≦57 |
||||
Leakage |
1×10-2Pa·l/s(1×10-4mbar· l/s) |
||||||||
Max. Inlet/Exhaust Pressure |
MPa |
0.1 /0.13 |
|||||||
Ambient Operation Temp. |
℃/℉ |
5~40/41~104 |
|||||||
Max. Water Treatment |
G/h |
60 |
50 |
||||||
Motor |
Output |
kW/hp |
1.50/2.00 |
0.75/1.00 |
0.55/0.74 |
0.25/0.30 |
|||
Operating Voltage |
VAC |
380/220 |
380/220 |
220 |
380/220 |
220 |
220 |
||
Speed |
50Hz |
rpm |
1410 |
||||||
60Hz |
1600 |
||||||||
Inlet/Exhaust Flange |
mm |
KF40/16×2 |
KF40/16 |
KF25/16 |
KF25/16 |
||||
Cooling Type |
Air cooled |
||||||||
Weight |
kg |
52 |
36 |
32 |
18 |
||||
Others |
With air flush |
