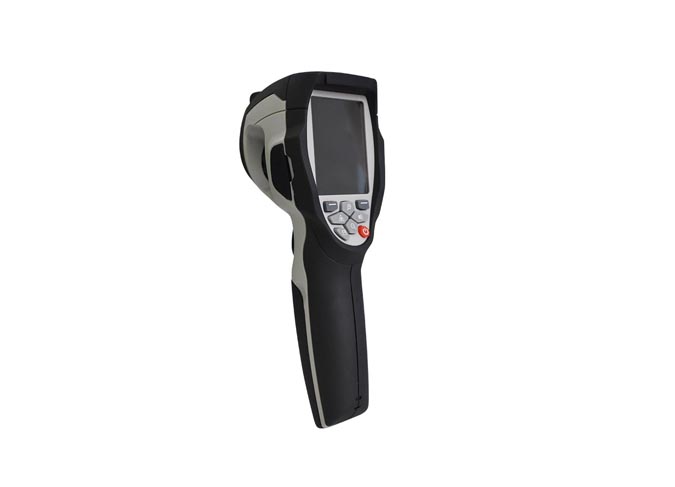

Explosion-proof Infrared Thermal Imager
Explosion proof thermal camera, mode YRH650, explosion-proof mark Ex ib I Mb, can be used in dangerous environments such as coal mines and underground mines for predictive maintenance, equipment troubleshooting and confirmation of normal operation of equipment. The LCD screen can display infrared image and visible light image, and the image can be saved in SD card. YRH650 connects the SD card to the computer through the card reader, which can move the pictures on the SD card to the computer, and has the function of recording and playing audio.
Parameters of Explosion-proof Infrared Thermal Imager
Explosion-proof Type |
Mine intrinsically safe |
Explosion-proof Mark |
Ex ib I Mb |
Size |
224×77×96mm |
Weight |
<500g |
Infrared Lens |
Field of view 19°x25°, focal length 9mm |
Minimum Focus Distance |
0.2m |
Spatial Resolution (IFOV) |
3.33mrad |
Infrared Resolution |
160×120 pixels |
LCD Display Resolution |
2.8-inch color TFT, 240×320 pixels |
Sensor Type/Operating Wavelength |
Uncooled Focal Plane Detector9 (UFPA)/8-14um |
Thermal Sensitivity |
<0.06°C/60mK |
Image Frame Rate |
50Hz |
Focus Method |
Manual |
Digital Zoom |
1-32 times digital continuous zoom, step 0.1 |
Image Display Mode |
Infrared image, visible-light image, picture-in-picture function, AUF automatic fusion |
Picture in Picture |
Fusion of visible light image and infrared image |
Palette |
iron oxide red, rainbow, gray, white gray |
Total Measurement Range |
-20℃~650℃ |
Measurement Accuracy |
±2°C (±3.6°F) or ±2% of the reading, whichever is greater |
Point Analysis |
Center point + automatic marking of the highest and lowest temperature in the area |
Emissivity Correction |
Between 0.01 and 1, variable |
Measurement Correction |
Emissivity reflected temperature |
language Selection |
English, Chinese, French, German, Spanish |
Body Storage/Memory Card Storage |
100M bytes, 80 images or 1-minute video recording/8GB memory card, expandable up to 32GB. |
Video Storage Format |
Standard MPEG-4 format, 1280×960@30fps, video > 60 minutes on the memory card |
Image Storage Format |
Standard JPEG format, resolution 1280×960, pictures with measurement data, can store more than 1000 pictures on the memory card |
Built-in Visible Light Camera |
5 million pixels |
Interface & Video Out |
USB interface, audio output interface, high-definition video output interface |
USB Interface |
Transfer data between device and computer |
Battery |
Rechargeable lithium battery, working time up to 4 hours or more |
Battery Capacity |
1400mAh |
Protection Class |
IP54 |
Features of Explosion-proof Infrared Thermal Imager
01
Infrared Resolution Up to 160×120 Pixels
LCD screen can display infrared and visible images, quick troubleshooting equipment.
02
Measuring Accuracy ±2℃
Measuring range -20℃ to 650℃, can accurately locate hot spots.
03
8GB Memory Card
Images can be saved in sd card. By connecting the sd card to the computer through the card reader, the picture of the sd card vendor can be moved to the computer.
04
With Audio Video and Play Function
Can store more than 60 minutes of video.
Xuxin provides intrinsically safe mobile phone, intrinsically safe thermal imaging camera, intrinsically safe thermal camera, explosion proof devices, etc. Want to know more, please contact us.
