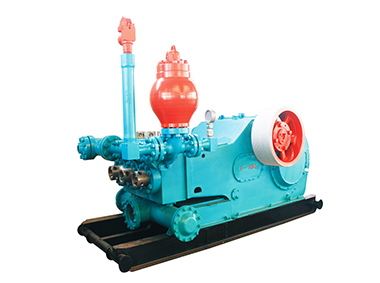

F-500 Mud Pump

Features

F 500 mud pump for oil drilling have features of solid and compact structure, small volume, good and reliable performance. It can meet the drilling requirements such as high pressure and big displacements whether in land drilling or off-shore drilling.

F 500 mud pumps have a longer stroke and can be operated at a lower stroke, thus improved the water supplying performance effectively and extended the lifetime of mud pump fluid end parts greatly.

Forced lubrication combined with splash lubrication to make lubrication effect perfect;

Series Mud Pumps are manufactured under standard of API Spec 7k, mud pump parts at the fluid end are interchangeable with the parts that are in conformity with API Spec.

The suction pulsation dampener has an advanced structure which is reliable to use and can make the pump realize its best suction performance.

Performance of mud pump was greatly improved by durable fluid end; and examination, mud pump repair and mud pump maintenance are easier to make due to its independent structure.

F-500 mud pump specification

Model

F-500

Rated Power( kW/HP)

373/500

Type

Triplex Single-Acting

Strokes per minute

165

Stroke Length (mm/in)

191/7 1/2"

Max. Liner Dia(mm/in)

170/6 3/4"

Gear Type

Herringbone Gear

Valve Pot

API-5#

Gear Ratio

4.286: 1

Dia of Suction Inlet(mm/in)

203/8"

Dia of Discharge Outlet

4"flange 5000psi

Dia. of Pinion Shaft(mm/in)

139.7(5 1/2)

Max Pressure Mpa/psi

27.2/3945

Overall Dimensions (mm/in)

3658*2709*2231 / 144" *106"*88"

Weight kg(lb)

9770 (21540)

Dezhou Rundong Petroleum Machinery Co., Ltd is a professional drilling suppliers. We provide Mud Pump Parts, Pressure Gauge, pulsation dampener charging kit and so on. Want to know more? Please contact us.

Localisation : NO. 1192,Xinhu Street,Dezhou City ,Shandong,China, 253000 Dezhou,Shandong,
Personne à contacter : Deshi Monet, +86 0534 2620016
