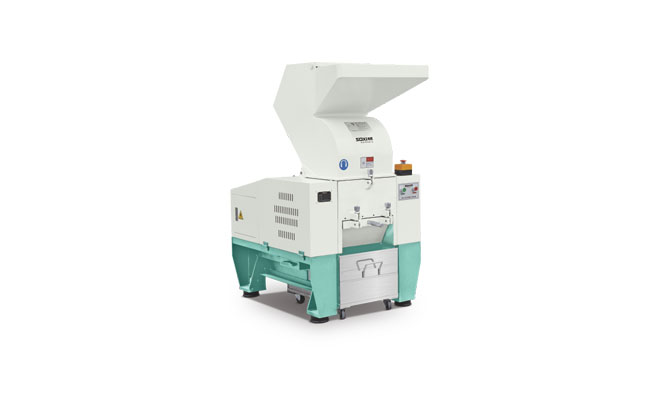

FAST BLADE TYPE PLASTIC CRUSHER
Quantité : 1000
It is suitable for the immediate crushing and recycling of the nozzle material of the injection molding machine at the side of the machine to avoid material pollution and save the storage and crushing space of the workshop. Reduce dust and noise, improve the environment of the workshop.
Specification/ Options Of Fast Blade Type Plastic Crusher
|
Standard specifications |
SAD-05 |
SAD-10 |
SAD-15 |
SAD-20 |
SAD-30 |
SAD-40 |
SAD-50 |
SAD-60 |
SAD-75 |
SAD-100 |
SAD-125 |
||
|
Knives |
Fixed |
PCS |
2 |
4 |
4 |
4 |
4 |
4 |
4 |
6 |
6 |
8 |
8 |
|
Rotating |
PCS |
12 |
18 |
21 |
24 |
33 |
36 |
36 |
39 |
45 |
54 |
63 |
|
|
Rotor diameter |
mm |
Φ180 |
Φ250 |
Φ300 |
Φ350 |
Φ380 |
Φ500 |
Φ500 |
Φ650 |
Φ700 |
Φ700 |
Φ850 |
|
|
Size of crushing chamber |
mm |
240X180 |
360X250 |
420X270 |
480X340 |
660X400 |
720X510 |
720X510 |
910X660 |
1050X800 |
1260X800 |
1470X90 |
|
|
Power |
HP |
5 |
10 |
15 |
20 |
30 |
40 |
50 |
60 |
75 |
100 |
125 |
|
|
Crushing ability |
kg/h |
100~250 |
200~400 |
300~500 |
350~550 |
500~800 |
800~1000 |
800~1200 |
900~1300 |
1000~1400 |
1300~1800 |
1500~200 |
|
|
Screen aperture |
mm |
Φ6 |
Φ8 |
Φ8 |
Φ10 |
Φ10 |
Φ12 |
Φ12 |
Φ12 |
Φ12 |
Φ12 |
Φ14 |
|
|
Dimensions |
L |
mm |
980 |
1100 |
1320 |
1560 |
1690 |
1970 |
1970 |
2495 |
2940 |
3020 |
3200 |
|
W |
mm |
635 |
785 |
900 |
960 |
1180 |
1410 |
1410 |
1810 |
2090 |
2300 |
2700 |
|
|
H |
mm |
1250 |
1435 |
1540 |
1825 |
1900 |
2530 |
2530 |
3055 |
3060 |
3400 |
4185 |
|
|
Weight |
kg |
370 |
610 |
720 |
1200 |
1800 |
3200 |
3200 |
4800 |
5700 |
8900 |
9800 |
|
Features Of Fast Blade Type Plastic Crusher
The whole machine is made of high-strength medium-carbon steel and has a high degree of impact resistance
Use heavy-duty bearings and oil seals to ensure that materials are not contaminated
Built-in sound insulation board can effectively reduce noise
Unique tool structure design coupled with high-quality tools, not only durable but also able to increase crushing capacity
The crushing bin and the tool holder are all precision processed by CNC to ensure the accuracy and stability of the cutting and transportation.
Fast Blade Type Plastic Crusher Gallery
Plastic Crusher Machine Factory
Plastic Crusher Machine Design
As one of the leading plastic crusher machine manufacturers, we provide plastic crusher machine for sale and competitive plastic crusher machine price.
If you want to buy plastic crusher machine, please contact us.
Covers a production area of 24,000 sq㎡, SOXI is among the top 10 plastic machine factory.
