FBG Displacement Sensor
Quantité : 5000pcs/we Prix : 100-1000Usd

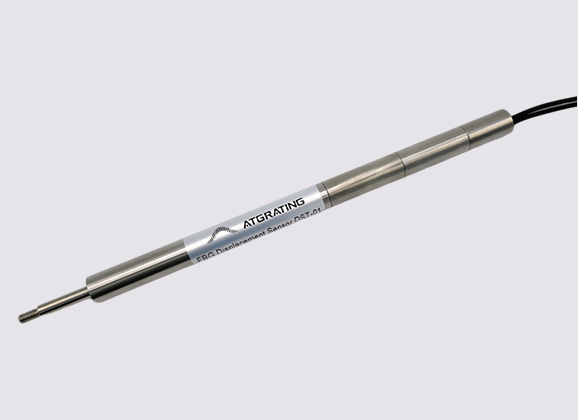

Fiber displacement sensor DST-01 is used for long-term measurement of structural beams and large buildings or other concrete, steel structures, building settlements, displacements and landslides. The sensor is installed by pulling rope, which can accurately and quickly measure the beam settlement, the displacement and deformation of the tunnel structure and the contact surface of the building. At the same time, a temperature FBG is installed inside the sensor, which can perform automatic temperature compensation.
Features of optical displacement sensor DST-01
High precision, high reliability, high stability
Built-in automatic temperature compensation
All-optical measurement, intrinsically safe
Long-term zero point stability
Easy to install
Application Of FBG Displacement Sensor DST-01
Measure the displacement of different depths in bridges, dams, tunnels and various underground works
Measurement of land subsidence deformation, slope slip deformation
Long-term displacement monitoring of steel structure base under force and deformation
Specification Of FBG Displacement Sensor DST-01
Parameter |
Unit |
Value |
Center Wavelength |
nm |
1460~1610 |
Range |
mm |
10 ~ 150 |
Resolution |
mm |
0.05% F.S. |
Accuracy |
mm |
0.5% F.S. |
Temperature Compensation |
-- |
Built-in |
Material |
-- |
Stainless steel |
Dimension |
mm |
Φ22x234 |
Installation |
-- |
Mechanical fixation |
Pigtail Length |
m |
Φ3mm armored cable, 1m at single end, or customize |
Optical Connector |
-- |
FC/APC, or customize |
Operating Temperature |
°C |
-20~+80 |
As one of fiber optic sensing companies, we can offer types of fiber optic pressure sensor for sale, if you are interested, please contact us.
