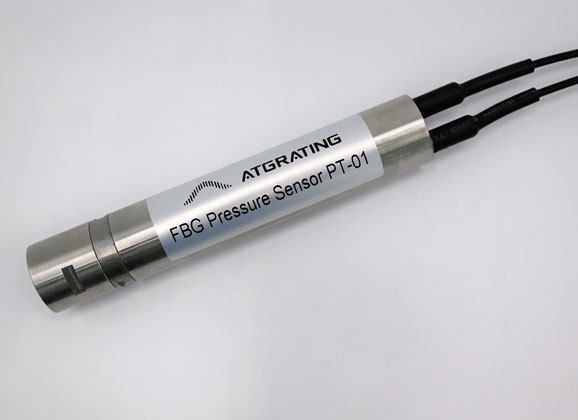

FBG Pressure Sensor PT-01
Fiber optic pressure sensor PT-01 is used for accurate measurement of fluid pressure such as liquid and gas, it is based on an industrial-grade design and uses a unique pressure elastic element as a sensing substrate, the sensor has built-in temperature compensation FBG, so as to eliminating the environment temperature influence, and get the accurate pressure measurement.
The PT-01 is embedded in hydraulic structures, bedrock or installed in piezometric , boreholes, dams, and pressure vessels to measure water pressure of pores or liquid level, it can also be used for dam seepage and seepage pressure monitoring, pressure vessel measurement, oil, water, gas pressure measurement, water level monitoring.
Features Of optical pressure sensor PT-01
High precision and reliability
Intrinsically safe
Wide measuring range
Quasi-distributed measurement
Built-in temperature compensation
Application Of FBG Pressure Sensor PT-01
Pore water pressure, water table depth
Dam seepage and seepage pressure
Dangerous goods storage tank pressure
Tunnel, underground building water level
Slope, tailing reservoir groundwater level
Specification Of FBG Pressure Sensor PT-01
Parameter |
Unit |
Value |
Center Wavelength |
nm |
1460 ~ 1610 |
Range |
MPa |
1 ~ 60 |
Resolution |
MPa |
0.05% F.S. |
Accuracy |
MPa |
0.5% F.S. |
Temperature Compensation |
-- |
Built-in |
Material |
-- |
Stainless steel or Inconel |
Dimension |
mm |
Φ26 x 137 |
Installation |
-- |
Bolted, Embedded |
Pigtail Length |
m |
Φ3mm armored cable, 1m at single end (dual fiber), or customize |
Optical Connector |
-- |
FC/APC, or customize |
Operating Temperature |
°C |
-20 ~ +80 |
As one of the fiber optic sensing companies, AtGrating offers fiber optical switch, fiber bragg grating pressure sensor, fbg pressure sensor, fiber optic pressure, fiber bragg grating pressure sensor, fibre optic pressure, etc. For more information, please feel free to contact us!
