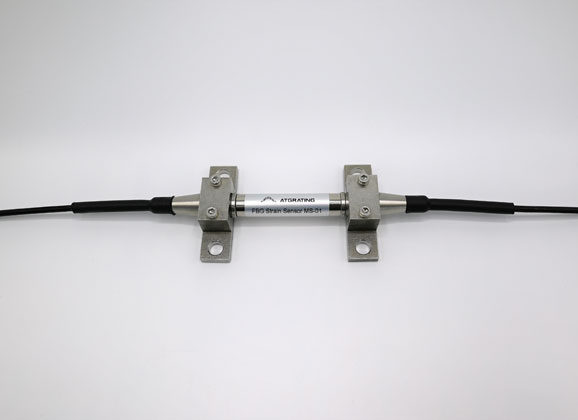

FBG Strain Sensor MS-01
Surface mounted fbg strain gauge MS-01 can meet the strain measurement needs of various occasions, and can be installed in different monitoring positions such as concrete surfaces or steel surfaces. Mainly used to measure the strain of steel structures and concrete surfaces. The external strain transmits the strain to the internal fiber grating through the sensor mounting base, and the high-precision fiber grating converts the sensed tiny strain into a sensitive optical wavelength, which is analyzed by an FBG interrogator.
Features Of FBG Strain Sensor MS-01
High Sensitivity and Accuracy
Self-referenced
Stainless Steel Housing
Long-term Reliability
Intrinsically Safe
Immunity to EMI/RFI
Application Of FBG Strain Sensor MS-01
Bridge Structural Health Monitoring
Building Monitoring
Tunnel Ribs Monitoring
Pipeline Local Strain Analysis
Ship Hull Monitoring
Specification Of FBG Strain Sensor MS-01
|
Parameters |
Unit |
Value |
Remark |
|
Center Wavelength |
nm |
1460 ~ 1610 |
Customized |
|
Strain Range |
με |
±1500 |
Customized |
|
Strain Resolution |
με |
0.01% F.S. |
|
|
Strain Accuracy1 |
με |
0.1% F.S. |
|
|
Operating temperature |
℃ |
-20-80 |
|
|
Dimension |
mm |
φ12 * 126 |
|
|
Installation |
-- |
Welding |
|
|
Connector |
-- |
FC/APC |
Customized |
|
Pigtail Type |
-- |
Amoured Or Jumper Cable |
Customized |
If you want to know more about fiber sensing, please visit our website.
