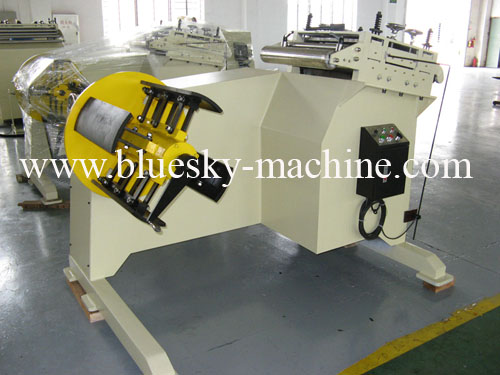

Feature for uncoiler & straightener TNS-300
Feature for uncoiler & straightener
1. Integraded with uncoiler & straightener,save space. And suitable for high precision products.
2. All rollers are made of bearing steel,quenched and hard chromed plated.
3. Use Japanese electronicmagnetic contact and electric parts,long service life.
4. Variable speed control and high precision operation.Controlled by modern frequency converters to keep pace with straightening,stable feeding.
5. Straightener inclines to reduce feeding loop distance.
6. Highly rigid structures.
uncoiler & straightener specs strip thickness 0.5-3.2mm
|
Model |
TNS-300 |
TNS-400 |
TNS-500 |
TNS-600 |
TNS-700 |
TNS-800 |
|
Material width(mm) |
300 |
400 |
500 |
600 |
700 |
800 |
|
Material thickness(mm) |
0.35-3.2 |
|||||
|
Coil weight(kg) |
2000 |
3000 |
3000 |
3000 |
4500 |
5000 |
|
Coil I.D.(mm) |
450-530 |
450-530 |
450-530 |
450-530 |
450-530 |
450-530 |
|
Coil O.D.(mm) |
1200 |
1200 |
1200 |
1200 |
1200 |
1200 |
|
Straightening roller |
∮60X7 |
∮60X7 |
∮60X7 |
∮60X7 |
∮60X7 |
∮60X7 |
|
Motor(HP) |
2 |
3 |
3 |
3 |
5 |
5 |
|
Mandrel expansion |
Manual/hydraulic |
|||||
Note: The data above is your reference only,if any changes without notice.
