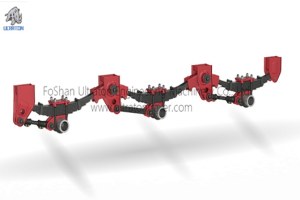

FH66 Type Lightweight suspension Series

Quantité : 300   Prix : 9000--20000(subject

FH66 type Lightweight Suspension Series is a lightweight design model of normal mechanical suspension that helps to guide the direction and to reduce the impact load and vibration by 3 pieces of steel leaf springs.

Overview

Overview of FH66 Type Lightweight suspension Series

Heavy duty and extra durability designed hangers and bushing.

Material of superior quality option for SUP9 or 60Si2Mn for leaf spring.

Equipped with 3x75x22 leaf spring.

Design for 2 axles installation with 10Ton each.

Applicable for both round beam trailer axle and square beam trailer axle.

Installation is applicable for overslung.

Advantage

Advantage of FH66 Type Lightweight suspension Series

Mature technology and reasonable design ensure good quality and competitive cost

FH66 type Lightweight Suspension Series uses steel leaf spring as the spring element, to achieve stronger rigidity and strength

Simple structure makes easy maintenance

Lighter weight design can meet different need

Fast response and flexible service from our professional team

Distinct location to get full range support on delivery and manufacturing

Ultraton's long term tenet to be your reliable partner bringing you Greater value makes you worry free on after sales service

FH66.2AR5 Tandem Suspension With Three Leaf Springs Dimension: 8*75*13

Model

A (mm)

L1 (mm)

L2 (mm)

L3 (mm)

Axle Load(KG)

FH66.2/1245/390/AR5/3L

390

482.5

1245

1105

10,000*2

FH66.2/1245/415/AR5/3L

415

482.5

1245

1105

10,000*2

FH66.2/1245/440/AR5/3L

440

482.5

1245

1105

10,000*2

Note: (1) Dimension 'A': Unladen, Rated Laden'A*'=A-30

(2) Suitable For Round / Square Axles

(3) Tightening Torque

Torque Arm Pin Nuts: 150-200N.M.

Torque Arm Pin Bolts: 90-100N.M.

Equaliser Shaft Nuts: 290-350N.M.

'U' Bolts Nuts: 500-540N.M.

Drop Out Bolts: 75-85N.M.

As one of the most professional biggest trailer manufacturers, we provide 40ft skeleton dump trailer for sale, lightweight semi trailer, Ultraton semi trailer and etc. Want to know more? Contact us.

Localisation : No. 1419, 4 Greenland Commercial Center, 286 Dongle Road, Daliangfu Community Resident Committee, Shunde District, Foshan City, 528300 foshan,
Personne à contacter : Cai Cherrie, 86 0757 22280930
