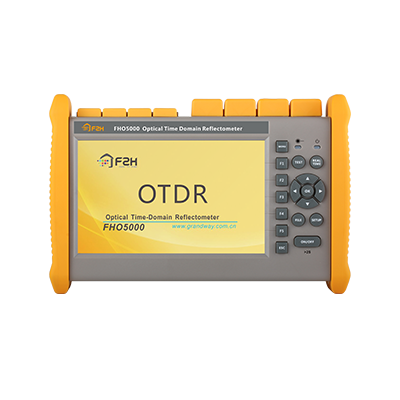

FHO5000 series OTDR
Functions
Fiber breakpoint / length / loss testingFiber breakpoint / length / loss testingFiber breakpoint / length / loss testingFiber breakpoint / length
7inch TFT-LCD
Screen size(touch screen optional)
24~45dB
Dynamic range
3.6~8m
Attenuation dead zone
0.8~1.2
Event dead zone
80000
Trace storage
80000
Trace storage
Multi Functions Test
One button test,real time test and fiber link map test
3×USB prot ; 6 hours test; Built-in VFL/LS/OPM
16G: BTest trace storage
200km: Long distance test
26~45dB: Multi dynamic range
Humanized structure interface design
7-inch: color touch
1m: height anti-fall
FLM test
Intelligent multi pulse width analysis, viewable dis-play of all events of optical fiber link
1m ultra short deadzone
Ultra short deadzone helps you identify short dis-
Through splitter test
Test two splitters fiber line1×4+1×16
Test one splitter fiber line
Through splitter test
Test two splitters fiber line1×4+1×16
Remote control function
Remote control of FHO5000 through Ethernet port.
OTDR report export
Easy export, report making
Suitable for variousworking environ-
Backlight adjustment, the screencan be seen clearly under strong
Multi Functions Test
|
Item |
Parameter |
|
Pulse Width |
SM |
3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 5μs, 10μs, 20μs |
|
MM |
850nm：3ns，5ns，10ns，20ns，50ns，100ns，200ns，500ns，1us 1300nm：3ns，5ns，10ns，20ns，50ns，100ns，200ns，500ns，1us，2us |
|
|
Test Range |
SM |
100m、500m、2km、5km、10km、20km、40km、80km、120km、160km、240km |
|
MM |
850nm：500m，2km，5km，10km 1300nm：500m，2km，5km，10km，20km，40km，80km |
|
Sampling resolution |
Min 0.05m |
|
Linearity |
128,000 |
|
Sampling point |
≤0.05dB/dB |
|
Loss threshold |
0.01dB |
|
Loss resolution |
0.001dB |
|
Distance resolution |
0.01m |
|
VFL |
±(1m+Test distance×3×10 -5 +Sampling resolution) （excluding IOR uncertainty） |
|
Distance accuracy |
≥ 160000 curves |
|
Data storage |
10mW，CW/2Hz |
|
Interface |
RJ-45，3*USB（Type A×2，Type B×1） |
|
Display |
7 inch TFT-LCD（Touch screen is optional） |
|
Battery |
7.4V/4.4Ah lithium battery（with air tracffic certification），6 hours continuous working |
|
Temp |
Work Temp：-10℃~+50℃；Storage Temp：-20℃~+70℃ |
|
Humidity |
≤ 95%（no-condensation） |
|
Size/Weight |
253×168×73.5mm / 1.5kg（with battery） |
|
Accessories |
Wrist strap、Charging adapter、 Battery、USB cable、Quick guide、Carrying bag |
|
Optional |
SC/LC adapter、OPM、LS、Touch screen、WiFi、Fiber microscope |
Parameter
|
Model |
Wavelength |
Dynamic range |
Deadzone |
|
FHO5000-D26 |
1310/1550nm |
26/24dB |
0.8/4m |
|
FHO5000-D35 |
35/33dB |
0.8/4m |
|
|
FHO5000-D40 |
40/38dB |
1/4m |
|
|
FHO5000-D43 |
43/41dB |
1/5m |
|
|
FHO5000-D45 |
45/43dB |
0.8/3.6m |
|
|
FHO5000-TP35 |
1310/1490/1550nm |
35/33/33dB |
0.8/4m |
|
FHO5000-T40F |
1310/1550/1625nm |
40/38/38dB |
1/4m |
|
FHO5000-T43F |
43/41/41dB |
1/5m |
|
|
FHO5000-T45F |
45/43/43dB |
0.8/3.6m |
|
|
FHO5000-M21 |
850/1300nm |
19/21dB |
1.2/8m |
|
FHO5000-MD21 |
850/1300nm |
19/21dB |
1.2/8m |
|
1310/1550nm |
35/33dB |
0.8/4m |
|
|
FHO5000-MD22 |
850/1300nm |
19/21dB |
1.2/8m |
|
1310/1550nm |
40/38dB |
1/4m |
Packing list
|
OTDR main unit |
lithium battery |
Carrying bag |
|
Wrist strap |
Charging adapter |
Charging cord |
|
USB Cable |
Calibration Report |
Quick Guide |
