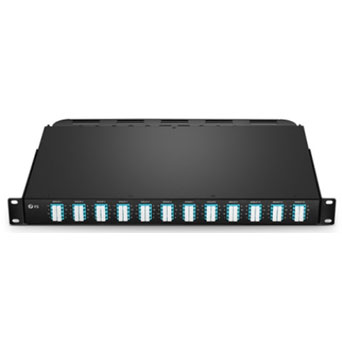

Fhu 1U 96F Branch Distribution Box
PHX 96-core MTP®-LC branch distribution box, the front panel provides 48 duplex LC interface, rear panel provides 12 MTP® (8-core) interface, There are 12 pairs of MTP® (8-core) -LC fiber branch jumpers pre-terminated internally, so 40G can be achieved by LC duplex fiber jumpers and MTP® (8-core) fiber jumpers. The connection between network devices and 10G network devices. The advantages of this box structure are space-saving, easy management, flexibility, and the ability to protect fiber optic jumpers from external mechanical damage.
图片链接：
Specification of Fhu 1U 96F Branch Distribution Box
|
Model Name |
FHU-96FLC12MSMF |
Number of Cores |
96 |
|
Type of Front Panel Adapter |
48 * LC duplex |
Type of Rear Panel Adapter |
12* 8-core MTP® male (with guide pin) |
|
Insertion Loss |
MTP≤0.35dB, LC≤0.2dB |
Return Loss |
MTP®≥60dB, LC≥50dB |
|
Size (HxWxD) |
44x482x261.2mm |
Optical Fiber Type |
OS2 9/125μm / OM4 50/125µm |
|
Working Yemperature |
-20℃~+60℃ |
Storage Temperature |
-40℃~+70℃ |
PHXFIBER ,as a optical communication company, offers an extensive range of optical communication products and customer services with our professional R&D team.
PHXFIBER, as one of the professional optical fibre manufacturing companies, we also provide different cassette mpo types, such as mpo breakout cassette, mpo lc cassette, mpo fiber cassette , mpo cassette patch panel,etc...
