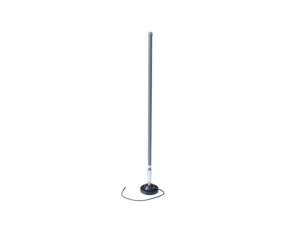

Fibre-glass Omni Antenna
Model NO: BBT-0506FG06V
Type : Fibre-glass Omni Antenna
Application:
★560-610MHz Wireless communication transmission system.。
★Long distance wireless communication
★wireless data collection and transmission
Features：
★High Gain, Low VSWR,Stable performance
★High quality fiberglass radome, strong protection
★Environmental adaptability.
Specifications:
|
Electrical |
|
|
Model Number |
BBT-0506FG06V |
|
Frequency Range |
560-610MHz |
|
Polarization Type |
Vertical |
|
Gain |
6dBi |
|
3dB Beam-Width. H-Plan |
360° |
|
3dB Beam-Width. E-Plan |
35° |
|
VSWR |
≤1.5 |
|
Input Impedance |
50Ω |
|
Max Input Power. |
50W |
|
Lightning Protection |
DC Grounded |
|
Mechanical |
|
|
Connector Type |
SMA-Type Male |
|
Dimensions H*W*D (mm) |
Φ100*800（mm） |
|
Radome Material |
Fiberglass |
|
Radome color |
Gray |
|
Operating Temperature Rang |
-40ºC/+60ºC |
|
Support Pole Diameter |
φ30-φ60(mm) |
|
Rated Wind Velocity |
60m/s |
