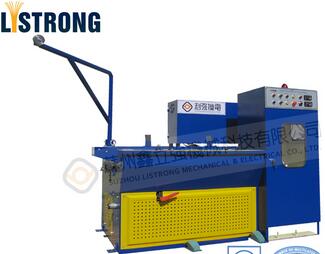

Fine wire drawing machine of 24DBX
Quantité : 10
Inlet diameter(MM)；Φ0.5-Φ1.2
Outlet diameter (MM)：Φ0.1-Φ0.3
Max. speed(MPM)：600
Max. number of drawing dies：24
Mechanical reduction ratio：13%
Fixed-speed capstan reduction ratio: 8%
Drawing capstan: Welded by steel plate
Max. capstan dia.(MM): Φ202
Fixed-speed capstan dia.(MM): Φ167
Frame: Cast in iron
Main machine power: 7.5KW
Take-up power；3.7KW
Correction system：Automatically control
Dynamic control：Double frequency converters control
Transmission method：Timing belt
Pay-off method：Over-head
Traversing method：Flat belt + Synchronous motor
Tension control：Weight balance by swing arm
Lubrication system of drawing：Immersing +Spray type
Take-up bobbin size(MM)：Φ300
Take-up capacity(KG)：13
Bobbin loading & unloading：Shaft type
Brake：Pneumatic brake
Machine dimension(MM)：2300*1300*1900
Machine weight(KG)：2500
Personne à contacter : Liu Erica, +8651266731698
