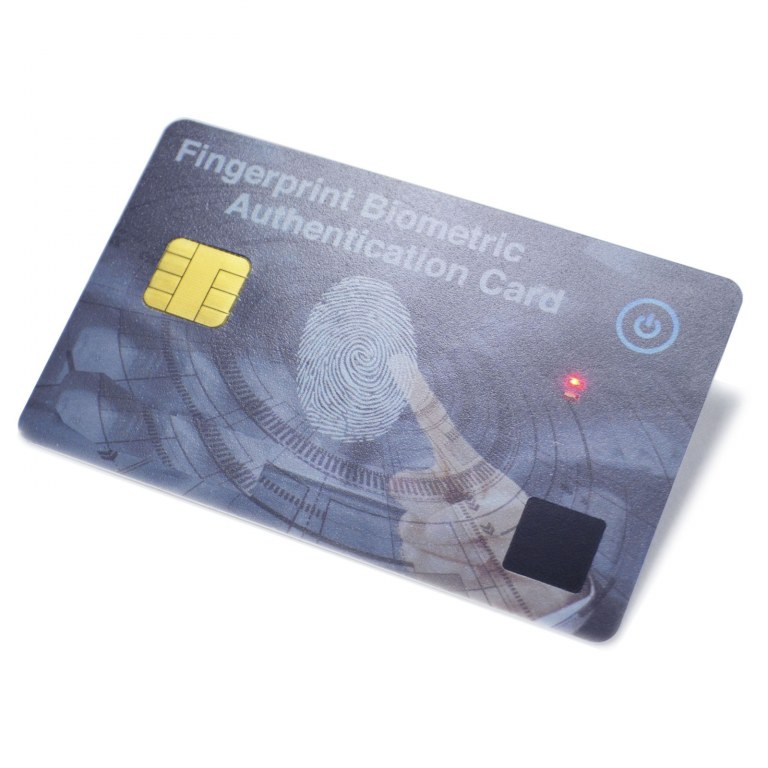

Fingerprint MIFARE S50 RFID Contaceless Card

FPrfid-S50 is a powerful 13.56Mhz Mifare S50 RFID card built-in capacitive fingerprint sensor with MCU embedded recognition algorithms. The Cermet-like coating of fingerprint sensor provides up to 6H hardness and protects sensors against scratch, impact and daily wear-and-tear. It can be widely applied in various fields such as access control systems, locks and safes, high-level security applications and other standalone authentication applications.

- SPECIFICATION -
**Mifare RFID Card**
*Card Size : 85.6 (L) x 54 (W) x 0.74 ~ 0.84 (T) mm
*Chipset : Philips MF1 IC S50
*Frequency : HF 13.56Mhz
*Card Material : ABS, PVC, PET as requested
*LED Indicators : 2 LEDs, red indicates power on; green indicates fingerprint recognition
*Embedded Battery : Solid state battery for fingerprint sensor
*Card Warping/ Curl Test : Compliance ISO/IEC 14443-1 4.3.3, ISO/IEC 10373-1 5.8

**Capacitive FingerPrint Sensor**
*Resolution / Sensing Area : 508 DPI / 8 x 8 mm or 160 x 160 pixel
*Sensor Type : Capacitance Type
*Supply Voltage : 3.0 ~ 3.6VDC
*Hardness / Surface : Up to 6H / Cermet-like Coating
*FAR / FRR : 0.0001 / < 2%
*Fingerprint Template Number : Finger number x 5, each finger image x 8
*Battery Life : 300 times operation based on 6 sec. when pressing power button
*Operating Temperature : -10 ~ 50o C / < RH 20 ~ 85%
