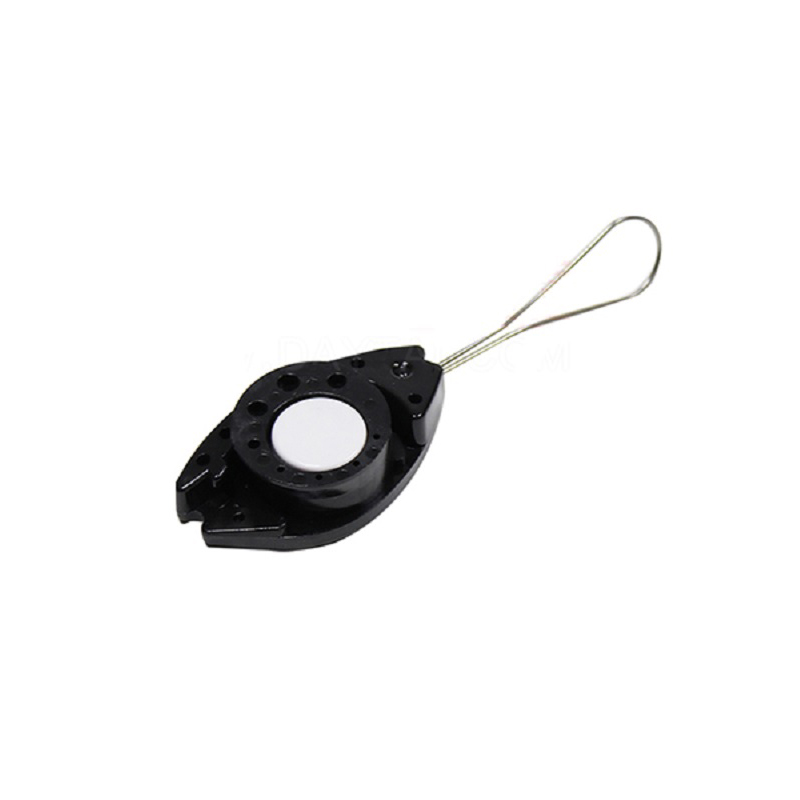

Fish Fiber Optic Drop Cable Clamp
FISH fiber optic drop cable clamp is the tension clamp for FTTH drop cable clamp. It is a plastic&metal FTTH drop clamp.
Fish clamp FTTH can be used in anchoring, turning, suspension fiber optic cable routes. Without suspension wire (in case of fiber optics diameter is 3.3mm*2.0mm): 2turns. With suspension wire (in case of fiber optics diameter is 5.0mm*2.0mm): 1 turn.
As a professional manufacturer of FISH fiber optic drop wire cable clamp, TUOLIMA has a lot of the experience of ftth drop clamp manufacturing. With years of fiber drop cable clamp production, TUOLIMA has formed its own advantages in fiber optic drop wire cable clamp. If you are looking for a religble fiber optical cable clamp supplier, TUOLIMA is your ideal choice. You can check the details of fiber optic drop wire cable clamp. If you have any questions, welcome to consult.
Details of Fish Fiber Optic Drop Cable Clamp
All the assemblies passed the tensile tests and temperature-cycling test;
Good anti-corrosion performance with TUOLIMA style;
Fiberglass reinforced plastic and stainless steel;
Use with YK and Fish type;
Can be used in anchoring, turning, suspension optical fiber cable routes.
Specification of Fish Fiber Optic Drop Cable Clamp
Code |
Material |
Round Cable Size |
Code |
Material |
FISH Drop Cable Clamp |
Alloy for anchor body; 201 stainless steel for wire |
3-7mm |
FISH SS Wire Bail |
Alloy for anchor body; 201 stainless steel for wire |
Weight |
Dimension |
Application |
Weight |
Dimension |
26.2g |
126.5mm*40mm*20mm (L*W*D) |
Tension Clamp for figure 8 cable |
26.2g |
126.5mm*40mm*20mm(L*W*D) |
Fish series are tension clamps Tor FTTH drop cable. Fish clamp FTTH, can be used in anchoring, turning, suspension optical fiber cable routes.
Without suspension wire(in case of fiber optics diameter is 3.3mm*2.0mm): 2 turns.
With suspension wire(in case of fiber optics diameter is 5.0mm*2.0mm): 1 turn.
All the assemblies passed the tensile tests, operation experience with temperatures ranging from -60℃ up to +60℃ test, temperature-cycling test.
TUOLIMA is a professional ftth drop cable clamp supplier and manufacturer in China. If you want to a reliable ftth drop clamp supplier, TUOLIMA is your perfect choice. Welcome to contact us!
